Product Details:
|
| Name: | Aluminum Sheet | Standard: | AISI |
|---|---|---|---|
| Surface Treatment: | Coated | Width: | 20-2800mm,customizable |
| Shape: | Sheet | Application: | Container Plate,Construction,Decoration |
| High Light: | Roof Tiles corrugated metal aluminum sheet,AISI galvanized corrugated metal roof panels,galvanized corrugated metal roof panels 5000 |
||

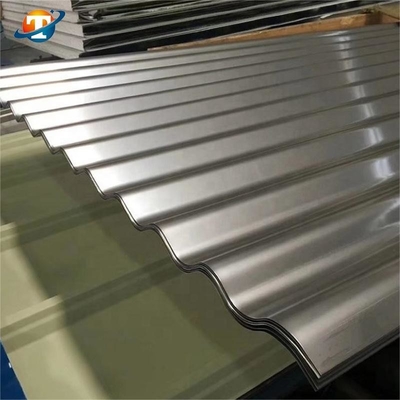

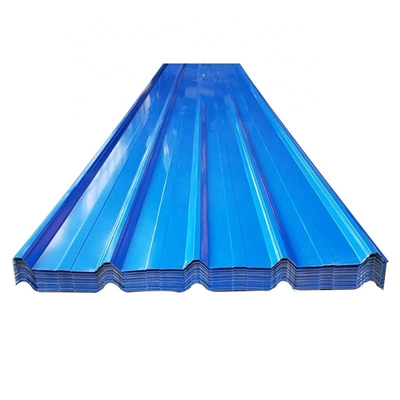

Roof Tiles Prices Aluminum Corrugated Steel Iron Metal Galvanized Wave Roofing Sheet
Description
|
Product Name
|
Roof Sheet/Corrugated Steel Sheet/Roof Tiles/Profiled Sheet
|
|||
|
Thickness
|
0.12mm-1.2mm or 0.3mm/0.5mm/0.6mm/0.8mm/1.0mm
|
|||
|
Color
|
Standard color:red,blue,white,grey Special color:according to RAL color
|
|||
|
Application
|
1.construction:prefabricated house,steel house,mobile house,modular house,villa, bungalow design,portable house/carbin,ready made
house,kiosk booths,steel building... 2.container manufacturing 3.household appliances and furniture 4.vehicle and vessel manufacturing 5.others,like machinery structure parts,manufacturing shells of motors and so on |
|||
|
Length
|
2m/3m/5m/5.8m/6m/8m/11.8m/Others
|
|||
|
Width
|
20-1500 mm,Normal width is 914/1000/1219/1250/1500 mm,customizable
|
|||
|
Surface Treaments
|
Galvanized/Galvalume/Ral Color Coated
|
|||
|
Material
|
Alloy 6063 / 6061 / 6005 / 6060 T5 / T6
|
|||
|
Paint
|
Top: 10 to 35 um (5 um + 12-20 um) Back: 7 +/- 2 um
|
|||
|
Coating
|
PE/PVDF/HDP/SMP
|
|||
|
Package Details
|
Plastic Cloth/Brown Paper/Galvanized Plate
|
|||
|
Trade Term
|
FOB/CFR/CIF/EXW/DDP
|
|||
|
1MOQ
|
1 Tons
|
|||
|
Payment Term
|
T/T(30% Deposit+70% )
|
|||
|
Material table
|
Product use
|
|
|
1000 series
|
1050
|
Food, chemical and extrusion coils, various hoses, fireworks powder |
|
1060
|
Chemical equipment is its typical use | |
|
1100
|
Chemical products, food industry installations and storage containers, weldments, heat exchangers, printed boards, nameplates and reflective appliances | |
|
|
2024
|
Aircraft structures, rivets, missile components, truck hubs, propeller components and other structural components |
|
2A12
|
Aircraft skin, spacer frame, wing rib, wing beam, rivet, etc., and structural parts of buildings and transportation vehicles | |
|
2A14
|
Free forging and die forging with complex shape | |
|
3000 series
|
3003
|
Kitchen utensils, food and chemical products, storage equipment, storage tanks for transporting liquid products, and various pressure vessels and pipelines |
|
3004
|
Chemical product production and storage devices, plate processing parts, building processing parts, building tools and various lamp parts | |
| 3105 | Room partition, baffle, movable room board, eaves gutter and downpipe, sheet forming parts, bottle caps, corks, etc | |
|
4000 series
|
4032
|
Piston, cylinder head |
|
4043
|
Building distribution frame | |
|
4343
|
The products are widely used in automobiles, water tanks, radiators, etc. | |
|
5000 series
|
5052
|
Aircraft fuel tank, oil pipe, traffic vehicle and ship sheet metal parts, instruments, street lamp supports and rivets, hardware products, etc |
|
5083
|
Plate Weldments of ships, automobiles and aircraft; Pressure vessel, refrigeration device, TV Tower, drilling equipment, transportation equipment | |
|
5754
|
Storage tanks, pressure vessels, ship materials | |
|
|
6005
|
Ladder, TV antenna, etc |
|
6061
|
Pipes, rods, profiles and plates for trucks, towers, ships, trams, furniture, mechanical parts, precision machining, etc | |
| 6063 | Building profiles, irrigation pipes and extruded materials for vehicles, stands, furniture, fences, etc | |
|
|
7075
|
It is used for manufacturing aircraft structure and other high stress structural parts and molds with high strength and strong corrosion resistance |
|
7175
|
High strength structure for forging aircraft. | |
| 7475 | Aluminum clad and non aluminum clad plates for fuselage, wing frame, stringer, etc. Other parts with high strength and high fracture toughness | |
| 8000 series |
8011
|
The aluminum plate with bottle cap as the main function is also used in radiators, most of which are used in aluminum foil products
|
