Product Details:
|
| Product Name: | Galvanized Steel Coil | Standard: | AISI |
|---|---|---|---|
| Type: | Steel Coil | Thickness: | 0.12-4.0 |
| Material: | SGCC/CGCC/DC54D+Z | Width: | 800-1800mm |
| High Light: | AiSi Galvanized Steel Coil,DC54D Galvanized Steel Coil,gi steel coil Vehicle Industry |
||

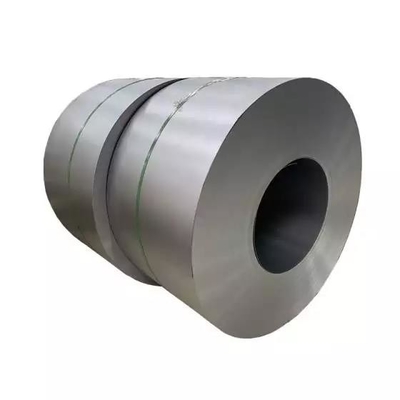

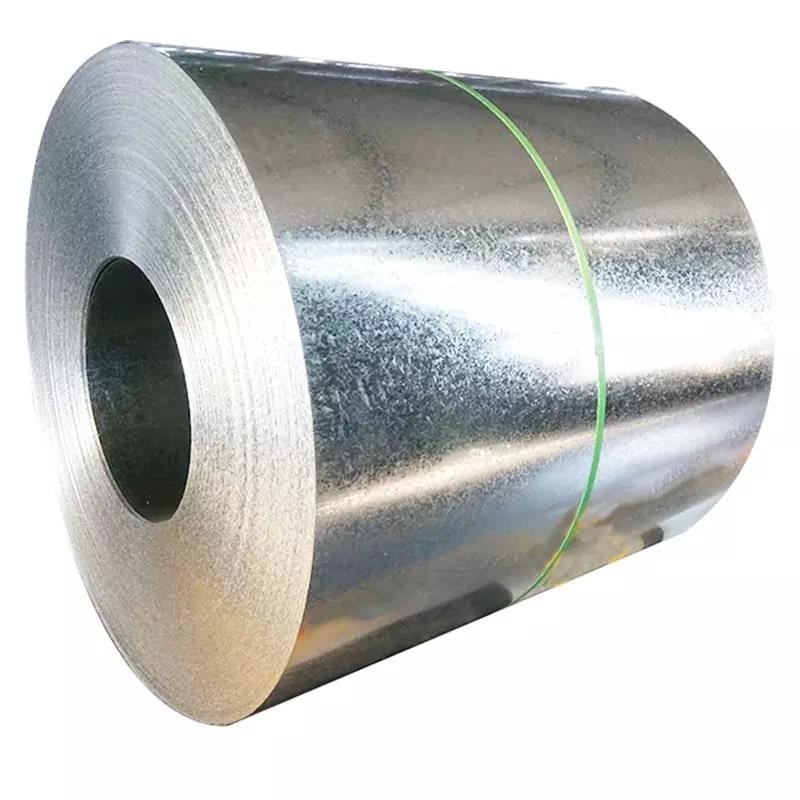

SGS Galvanized Steel Coil 1000-1800mm DC54D AiSi For Vehicle Industry
Description:
Galvanized or galvanized 80-200 grams of commonly used anti-corrosion coatings are divided into hot-dip galvanized Zn and hot-dip aluminum-zinc alloy Al-Zn (the composition of aluminum-zinc alloy is aluminum 55%, zinc 43.5% and silicon 1.5%, 55%Al-Zn for short). The surface has a highly decorative bright silver-gray color and regular patterns, and has a sense of embossing.
Characteristics:
1. Heat reflectivity
2. Heat resistance
3.Corrosion resistance
4. Economy
5. Easy to paint The galvanized sheet has excellent adhesion between the paint and can be painted without pretreatment and weathering treatment.
6. Galvanized steel sheet has a gorgeous surface of silvery white.
7. Galvanized steel sheet and galvanized steel sheet have similar processing performance and spraying performance.
|
Name |
SGS galvanized steel coil 1000mm-1800mm DC54D+Z AiSi |
|
Grade |
CGCC /SGCC / DC54D+Z /SPGC /SGLD /PPGI /S250GD /S550GD |
|
Standard |
EN10327-2004 / JIS G3302-1994 / ASTM A653M-06A /DIN |
|
Thickness |
0.12mm - 2.00mm |
|
Width |
600mm - 1500mm |
|
Inner Diameter |
508 / 610mm |
|
Coil Weight |
3-10 Tons |
|
Zinc Coating |
40g/m2 - 200g/m2 (Z40 ~ Z200) |
|
Spangle |
Small / Regular / Spangle Free/ Zero |
|
Surface |
Chrome Passivation / Sking Passing |
|
Technique |
Hot Rolled |
|
Material shape |
Coils / Tiles / Sheets |
|
Applications |
Construction / Metallurgy / Vehicle Industry / Home Appliances / Otros |
| Chemical Composition | ||||||
| GRADE | C | Si | Mn | P | S | Ti |
| SGCC/DX51D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| DX52D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| SGCD/DX53D+Z | ≤0.10 | ≤0.30 | ≤0.50 | ≤0.05 | ≤0.030 | ≤0.020 |
| SGCE/DX54D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| DX56D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| Structural | ≤0.20 | ≤0.60 | ≤1.70 | ≤0.10 | ≤0.045 | |
Product details:
Packing and Shipping:
Quality Inspection:
Certification:
FAQ:
1.Q:Can I get some samples?
A:Yes,We are pleased to provide you with samples of our products.
