Product Details:
|
| Name: | Dx51d Z260 Hot Dipped Galvanized Sheet Gi Sghc 5000mm Length Han Steel | Standard: | ASTM,JIS,AISI |
|---|---|---|---|
| Application: | Home Appliance | Length: | Customers' Requirement |
| Width: | 1000mm，1800mm | Zinc Coating: | 40-275g/m2 |
| Highlight: | Z260 Hot Dipped Galvanized Sheet,5000mm hot dip galvanized steel sheet,JIS hot dip galvanized steel sheet |
||

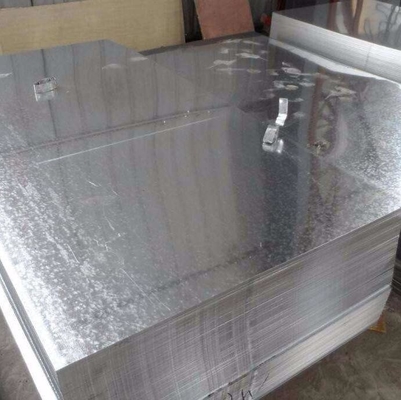

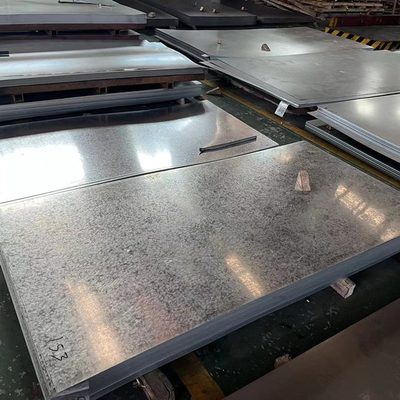

Dx51d Z260 Hot Dipped Galvanized Sheet Gi Sghc 5000mm Length Han Steel
Product Description:
Galvanized sheet is refers to the surface has a layer of zinc plated steel plate.
Galvanized is a frequently used economic and effective anticorrosion method, about half of the zinc production in the world are used in this process.
Hot galvanized sheet is mainly used in construction, household appliances, automobiles, machinery, electronics, light industry and other industries.
Product Name | Galvanized Steel Plate/Sheet | |||
Grade | DX51D+Z,DX52D+Z,DX53D+Z,DX54D+Z,DX56D+Z | |||
S250GD+Z,S280GD+Z,S350GD+Z,S550GD+Z | ||||
SGCC,SGCD,SGCE | ||||
Standard | ASTM,AISI ,JIS,DIN,GB,EN,etc. | |||
Zinc coated | 30-275g/m2 | |||
Spangle | Large Spangles,Regular Spangles,Small Spangles,Zero Spangles | |||
Surface treatment | Chromated,oiled/non-oiled and anti-finger printing | |||
Thickness | 0.3-3.0 mm or as required | |||
Width | 600-1250 mm or as required | |||
MOQ | 5TONS | |||
Substrate | Cold rolled ,Hot rolled | |||
Tolerance | Thickness:±0.01mm | |||
Width:±2mm | ||||
Packaging | Export standard package: bundled wooden box, suit for all kinds of transport, or be required. | |||
Application | construction,decoration,hardware,electric appliances,machinery and other industrial and civil purposes,such as electronic capacitor,composite cooker,rice cooker,refrigerator, computer casting,telecommunication,equipment,lamp shade,air conditioner,cosmetics cover and so on. | |||
Container size | 20ft GP:5898MM(Length)*2352mm(Width)*2393mm(High) 40ft GP:12032mm(Length)*2352mm(Width)*2393mm(High) 40ft HC:12032mm(Length)*2352mm(Width)*2393mm(High) | |||
STEEL GRADE | CHEMICAL COMPOSITION % | MECHANIC PROPERTY | C.B OF COATING | ||||||
C | Si | Mn | S | p | T.S | Y.S | E.L | ||
x103 | x103 | x102 | x103 | x103 | Mpa | Mpa | % | d=180 | |
JIS G3302 SGCC | 12 | 30 | 41 | 31 | 21 | 480 | 300 | 13 | OK |
JIS G3302 SGCH | 12 | 10 | 21 | 18 | 6 | 680 | 650 | 20 | OK |
ASTM 653 CS.B | 29 | 30 | 60 | 35 | 30 | 386 | 250-380 | 20 | OK |
DX51D+Z | 20 | 21 | 18 | 1.8 | 11 | 355 | 245 | 38 | OK |
G550 | 12 | 6 | 73 | 5 | 17 | 715 | 654 | 8 | OK |
