Product Details:
|
| Product Name: | Wu Steel Galvanized Steel I Beam ASTM A36 34mm Thickness Z40 Regular Spangle | Material: | Q235/Q235B/Q345/Q345B/SS400 |
|---|---|---|---|
| Standard: | ASTM,BS,DIN,JIS,GB Etc. | Grade: | Q195-Q420 Series |
| Application: | Structure Building, Bridge Car Construction Etc. | Length: | 6-12m |
| Highlight: | Wu Steel galvanised steel beam prices,galvanised steel beam prices ASTM,Z40 regular spangle galvanized steel |
||

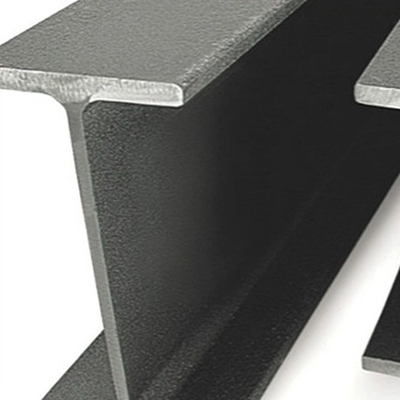

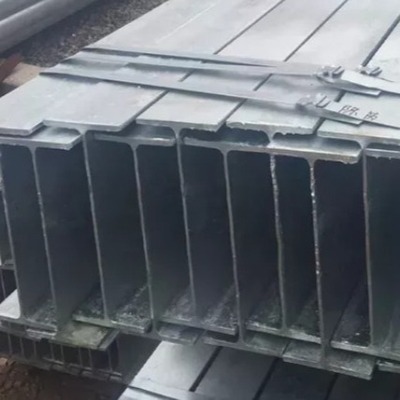

Wu Steel Galvanized Steel I Beam ASTM A36 34mm Thickness Z40 Regular Spangle
Product Descriptions:
|
Products
|
I beam or H beam
|
|
Grade
|
SS400, Q235B,S235JR,Q345B, S355JR, A36 etc.
|
|
Standard
|
ASTM bs GB EN JIS DIN etc
|
|
Length
|
6M,8m,9m,11m,12m or Customer's requirements
|
|
Flange Width
|
100-300mm or Customer's requirements
|
|
Flange Thickness
|
5-30mm or Customer's requirements
|
|
Web Width
|
100mm~900mm or Customer's requirements
|
|
Web Thickness
|
5-30mm or Customer's requirements
|
|
Model Number
|
H100*100-900*300
|
|
Surface
|
Hot rolled Galvanized Carbon steel Zinc Coating----45-600g/m2
|
|
Payment
|
T/T, D/A, D/P, L/C, Western Union, MoneyGram or according to customer requirements.
|
|
Sample
|
Able to provide Sample
|
|
MOQ
|
10 TON, If the purchase quantity is less than our MOQ, can be customized according to your requirements.
|
|
Application |
Widely used in building construction, building concrete
1.Industrial structure of the steel structure bearing bracket.
2.Underground engineering steel pile and retaining structure. 3.Petrochemical and electric power and other industrial equipment
structure. 4.Large span steel bridge components.
5.Ships, machinery manufacturing frame structure.
6.The train, automobile,
tractor beam bracket. 7.Port of conveyor belt, high speed damper bracket.
|
| Grade | Chemical Composition | Mechanical Properties | ||||||
| C | Mn | Si | S | P | Yield | Tensile | Elongati | |
| Strength Mpa | Strenth Mpa | -on % | ||||||
| Q195 | 0.06-0.12 | 0.25-0.50 | ≤0.30 | ≤0.045 | ≤0.05 | ≥195 | 315-430 | ≥33 |
| Q215 | 0.09-0.15 | 0.25-0.55 | ≤0.30 | ≤0.05 | ≤0.045 | ≥215 | 335-450 | ≥27 |
| Q235 | 0.12-0.20 | 0.30-0.67 | ≤0.30 | ≤0.045 | ≤0.04 | ≥235 | 375-500 | ≥26 |
| Q345 | ≤0.20 | 1.00-1.60 | ≤0.55 | ≤0.04 | ≤0.04 | ≥345 | 470-630 | ≥22 |
