Product Details:
|
| Name: | Electrogalvanized Steel Coils | Grade: | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD , S350GD, S350GD |
|---|---|---|---|
| Type: | Coil | Thickness: | 0.12-6.00mm,or Customer's Requirement |
| Width: | 600mm-1500mm,according To Customer's Requirement | Standard: | GB/T 3091-2001,GB/T13912-2002, BS 1387, ASTM F1083 Ect. |
| Highlight: | G550 electro galvanized steel suppliers,electro galvanized steel G350,egi coil G120 |
||

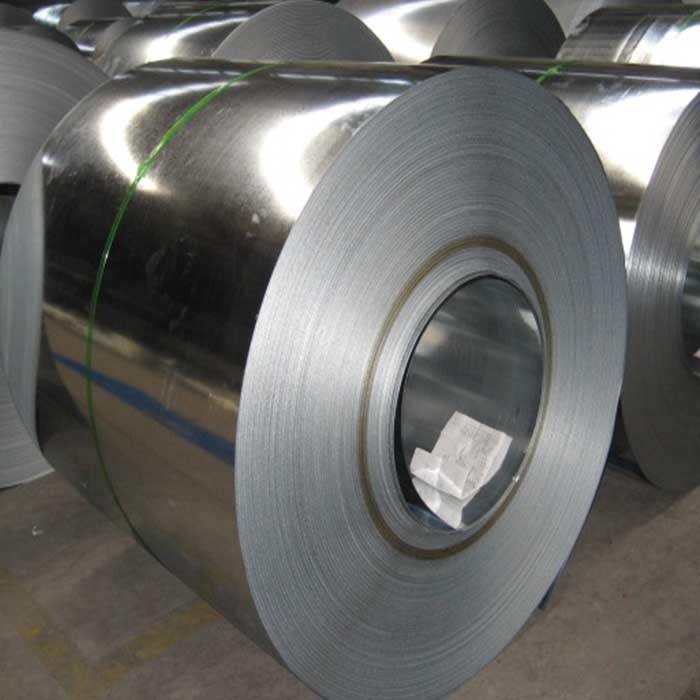

G350-G550 Galvanized Steel Coils G350 Coil G120 Gi For Industrial Fg Zinc Coated And Electrogalvanized
Description
Is electro galvanized the same as galvanized?
Electro galvanized cable should be used in applications with limited exposure to harsh or extreme environments. It offers minimal corrosion protection, but in instances where it's fully exposed to the elements, it will begin to corrode much faster than hot dip galvanized.
|
Technical Standard
|
EN10147/EN10142/DIN 17162/JIS G3302/ASTM A653
|
|
Grade
|
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD , S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,
SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80 (550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
|
Type
|
Coil/Sheet/Plate/Strip
|
|
Thickness
|
0.12-6.00mm,or customer's requirement
|
|
Width
|
600mm-1500mm,according to customer's requirement
|
|
Type of Coating
|
Hot Dipped Galvanized Steel(HDGI)/Electro-Galvanised Steel(EGI)
|
|
Zinc Coating
|
20-275g/m2
|
|
Surface Treatment
|
Passivation(C),Oiling(O),Lacquer sealing(L),Phosphating(P),Untreated(U)
|
|
Surface Structure
|
Normal spangle coating(NS),minimized spangle coating(MS),spangle-free(FS)
|
|
Quality
|
Approved by SGS,ISO
|
|
ID
|
508mm/610mm,according to customer's requirement
|
| Chemical Composition | ||||||
| GRADE | C | Si | Mn | P | S | Ti |
| SGCC/DX51D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| DX52D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| SGCD/DX53D+Z | ≤0.10 | ≤0.30 | ≤0.50 | ≤0.05 | ≤0.030 | ≤0.020 |
| SGCE/DX54D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| DX56D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| Structural | ≤0.20 | ≤0.60 | ≤1.70 | ≤0.10 | ≤0.045 | |
