Product Details:
|
| Name: | Color Coated Plate | Standard: | AiSi, ASTM, Bs, DIN, GB, JIS |
|---|---|---|---|
| Transport Package: | Export Standard Package Or As Request | Back Paint: | 5~12micron |
| Color: | Green Or As Customer Request | Length: | As Customer Request |
| Highlight: | Building Color Coated Plate,SGCC Color Coated Plate,Green Galvanized Steel Plate |
||
SGCC Building Material Color Coated Galvanized Steel Green Plate Sheet DX54D Z50
Product Description:
| Thickness | 0.12mm-0.8mm | ||||
| Width | 660~1100mm | ||||
| Length | 1000-11800mm | ||||
| Grade | DX51D+Z DX52D+Z DX53D+Z DX54D+Z DX56D+Z DX57D+Z | CS A CS B CS C FS A FS B | SGCC SGCD | SGC340 SGC400 SGC440 SGC490 SGC510 | S220GD+Z S250GD+Z S280GD+Z S320GD+Z S350GD+Z S550GD+Z |
| Zn Coating | Z30-Z275 | ||||
| Color | According to RAL code | ||||
| Coating Types | PE, SMP, JD, HDP, PVDF | ||||
| Coating | Top Paint: 10~25 micron | ||||
| Back Paint: 5~12micron | |||||
| Type of coating process | Front: Double Coated & Double Drying | ||||
| Back: Double Coated & Double Drying, Single Coated & Double Drying | |||||
| Finish | High light, Glossy, Matte | ||||
| Packing | Standard export package (Plastic film in the first layer, second layer is Kraft paper. Third layer is galvanized sheet+package strip+corner protected, one pallet about 3 tons) | ||||
| Application | Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings | ||||
| Advantages | 1.Design according to customers 'requirements 2.Production under ISO9001-2008 Quality System 3.Easy to be installed as light weight 4.Our products are recyclable materials 5.The less construction period, the more using time.6.paint your logo for free | ||||
| Grade | Chemical Composition | Mechanical Properties | ||||||
| C | Mn | Si | S | P | Yield | Tensile | Elongati | |
| Strength Mpa | Strenth Mpa | -on % | ||||||
| Q195 | 0.06-0.12 | 0.25-0.50 | ≤0.30 | ≤0.045 | ≤0.05 | ≥195 | 315-430 | ≥33 |
| Q215 | 0.09-0.15 | 0.25-0.55 | ≤0.30 | ≤0.05 | ≤0.045 | ≥215 | 335-450 | ≥27 |
| Q235 | 0.12-0.20 | 0.30-0.67 | ≤0.30 | ≤0.045 | ≤0.04 | ≥235 | 375-500 | ≥26 |
| Q345 | ≤0.20 | 1.00-1.60 | ≤0.55 | ≤0.04 | ≤0.04 | ≥345 | 470-630 | ≥22 |

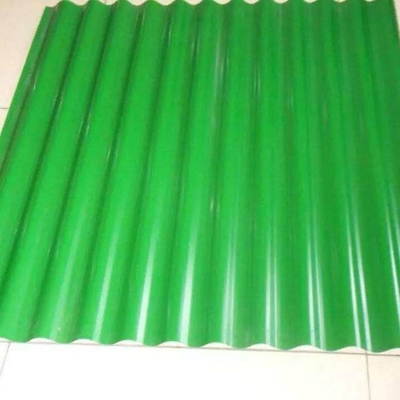

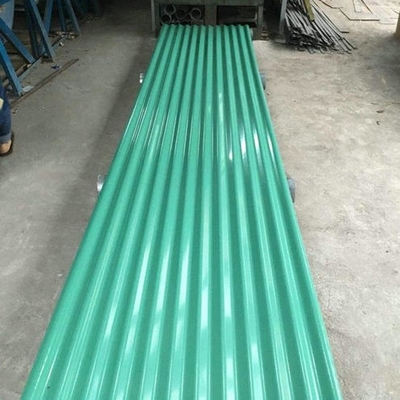

Product Show
Our Advantages
Application
About Us:
Packing & Shipping:
Pre-sale Service
Samples are available.
More than 10 years of design, manufacture, and sales experience.
Convenient delivery and short delivery time.
OEM & ODM orders are accepted.
Any type of logo printing or design is available.
Customer Service
We will choose the most convenient way of transportation for you.
We will check the sea freight and notify you immediately.
Quality inspection report will be sent to you after payment.
Relevant shipping information will be updated instantly until cargo reaches you.
