2.8/2.8 5.6/5.6 Bright Electrolytic Tinplate Coil DR MR SPCC ETP T1 T2 T3 T4

2.8/2.8 5.6/5.6 Bright Electrolytic Tinplate Coil DR MR SPCC ETP T1 T2 T3 T4
2.8/2.8 5.6/5.6 Bright Electrolytic Tinplate Coil DR MR SPCC ETP T1 T2 T3 T4 2.8/2.8 5.6/5.6 Bright Electrolytic Tinplate Coil DR MR SPCC ETP T1 T2 T3 T4

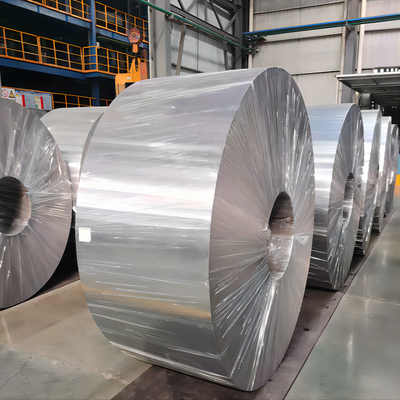

Large Image :  2.8/2.8 5.6/5.6 Bright Electrolytic Tinplate Coil DR MR SPCC ETP T1 T2 T3 T4

Product Details:
Place of Origin: Jiangsu,China
Brand Name: LIAN ZHONG
Certification: ISO9001 14001 BV TUV PED DNV etc
Model Number: Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(5
Payment & Shipping Terms:
Minimum Order Quantity: 1 MT
Price: Negotiable
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 8000MT/Month
Contact Now

2.8/2.8 5.6/5.6 Bright Electrolytic Tinplate Coil DR MR SPCC ETP T1 T2 T3 T4

Description
Width: 300-1050mm Thickness: 0.15-0.45mm
Hardness: T5 Finish: Stone Bright Silver
Temper: T1--T4 DR8-DR9 Width & Tolerance: 0/+3mm
Model Number: T2 Application: Industry
Highlight:

Bright Electrolytic Tinplate Coil

,

2.8/2.8 Electrolytic Tinplate Coil

,

ETP T1 Tinplate Steel Coil

                               —Electrolytic Tinplate Coils—



Product Description

What is the difference between tinplate and tin free steel?

The biggest difference is that chrome-plated iron(TFS) is not suitable for welding, It is generally used for top and bottom caps, crown caps, screw caps, two-piece cans, etc. However the Tinplate is suitable for welding. Chrome-plated iron, which is a tin-free steel sheet (TFS), has not been widely used until 2000. up to 150°C.

Is tin different from aluminum?

Beta tin is the metallic form of tin whereas alpha tin is a nonmetallic form. Aluminum is considered as a metalloid. Although there are many differences between the two elements, the main difference tin and aluminum is that tin has a silvery-white appearance whereas aluminum has a silvery-gray appearance.

 2.8/2.8 5.6/5.6 Bright Electrolytic Tinplate Coil DR MR SPCC ETP T1 T2 T3 T4 0



Thickness
0.14 - 0.50mm
Width
600 - 1050mm
Steel Type
MR, SPCC
Annealing
BA (Batch Annealed), CA (Continuously Annealed)
Standard
EN10202, JIS G3303, ASTM A623/ A624/ A625/ A626
Temper
T1, T2, T2.5, T3, T3.5, T4, T5, DR7, DR8, DR8M, DR9, DR9M, DR10
Coating for ETP
Euqally coated (1.1/1.1, 2.0/2.0/ 2.8/2.8/ 5.6/5.6, 8.4/8.4, 11.2/ 11.2)
Differetially coated (2.0/1.1, 2.8/1.1, 5.6/1.1, 5.6/2.8, 8.4/2.8, 8.4/5.6, 11.2/2.8, 11.2/5.6, 11.2/8.4, 15.1/5.6)
Surface
Bright, Stone, Fine Stone, Sliver, Matt
Post treatment
Passivation, Dos Oil
Shape
Coil, Sheet
Coil ID
420mm, 508mm
Coil Weight
12MT Max, or as per customer request
Bundle Weight
2MT Max
Application
A. Food Cans (Beverage Cans, Milk Cans, Fruit Cans, Tomato Cans, Edible oil etc. )
B. Industrial Cans (Paint Cans, Chemical Cans, Lube containers)
C. General Line Packaging (Aerosol Can, Gift Cans, Cookies Cans, Stationery Box etc.)
Processing service
Cut to sheet, scroll cut, lacquer and print service
Delivery Tolerance
+/-10%
Country of Origin
China
Delivery time
20-45 days
MOQ
1MT per size



Product Display

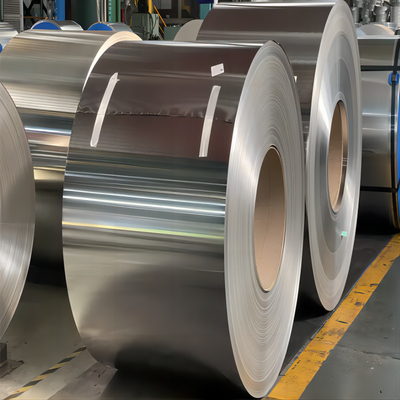

2.8/2.8 5.6/5.6 Bright Electrolytic Tinplate Coil DR MR SPCC ETP T1 T2 T3 T4 1

2.8/2.8 5.6/5.6 Bright Electrolytic Tinplate Coil DR MR SPCC ETP T1 T2 T3 T4 2

2.8/2.8 5.6/5.6 Bright Electrolytic Tinplate Coil DR MR SPCC ETP T1 T2 T3 T4 3



Quality Inspection



2.8/2.8 5.6/5.6 Bright Electrolytic Tinplate Coil DR MR SPCC ETP T1 T2 T3 T4 4



Product Process



2.8/2.8 5.6/5.6 Bright Electrolytic Tinplate Coil DR MR SPCC ETP T1 T2 T3 T4 5



Application



2.8/2.8 5.6/5.6 Bright Electrolytic Tinplate Coil DR MR SPCC ETP T1 T2 T3 T4 6



Factory Show



2.8/2.8 5.6/5.6 Bright Electrolytic Tinplate Coil DR MR SPCC ETP T1 T2 T3 T4 7



Packing



2.8/2.8 5.6/5.6 Bright Electrolytic Tinplate Coil DR MR SPCC ETP T1 T2 T3 T4 8



Certificate



2.8/2.8 5.6/5.6 Bright Electrolytic Tinplate Coil DR MR SPCC ETP T1 T2 T3 T4 9



FAQ



Q1: What is your terms of payment?

A: 30% T/T as the upfront deposit, 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: What is the terms of delivery?
A: EXW, FOB, CIF, CFR, DDU
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers’requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit. For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
