Product Details:
|
| Grade: | Q195-Q420 Series | Width: | 600-1500mm |
|---|---|---|---|
| Thickness: | 0.15-0.70mm, 0.15-0.50mm | Application: | Food Cans |
| Coil Id: | 508mm, 508mm/610mm, 508mm Or 610mm, 508mm Or 610mm For Tinplate Coil And Sheet, 508 Mm | Coil Weight: | 3-5 Tons Or As Requirment, 1-6tons, 2-8 Tons, 3-10 MT, 5-7 MT |
| Highlight: | Food Container Electrolytic Tinplate Coil,1200mm Tinplate Steel Coil,Food Grade ETP Electrolytic Tinplate Coil |
||

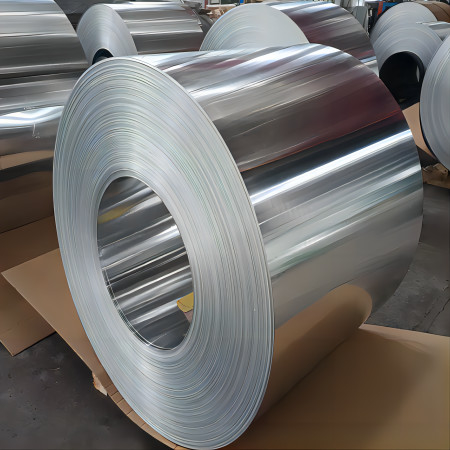

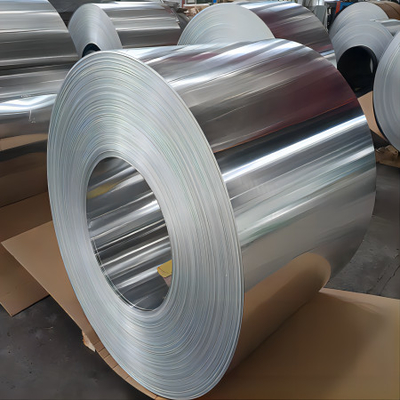

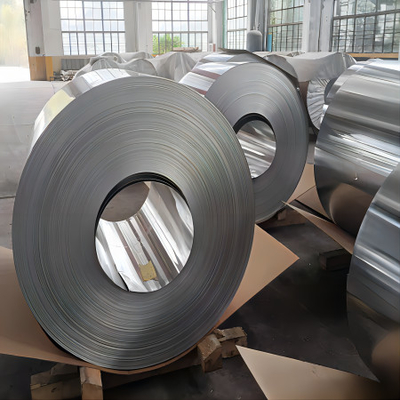

—Electrolytic Tinplate Coils—
|
Product Description Tinplate (commonly known as tinplate) refers to a steel plate with a thin layer of metallic tin plated on the surface. Tinplate is a low carbon steel rolled into a steel plate with a thickness of about 2mm, after pickling, cold rolling, electrolytic cleaning and annealing, leveling, trimming, and then cleaning, electroplating, reflow, passivation, and oiling. Cut into finished products of tin-plated sheet, and the tin used for tin-plated sheet is high-purity tin (Sn>99.8%). The tin layer can also be coated by hot dip plating. The tin layer of the tin plate obtained by this method is thicker, and the amount of tin used is large, and no purification treatment is required after tin plating. |
 |
|
Standard
|
GB2520, JIS G3303 and DIN EN10203-91
|
|
Material
|
D; L; MR;SPCC tinplate
|
|
Thickness(mm) |
Hot Rolled Thickness:0.12 ~ 3.00 mmCold Rolled Thickness:1.20 ~ 4.60 mm
As Your Request |
|
Width(mm)
|
0.12--0.55mm
|
|
Tolerance
|
Thickness: ±0.01 mmWidth: ±2 mm
|
|
Coil ID
|
508-610mm or as per your request
|
|
Coil Weight
|
3~5 Tons or as per your request
|
|
Tin Coating
|
Tin Coating: 2.8/2.8, 2.8/5.6, 5.6/5.6G/M2
|
|
Temper
|
Temper Single Reduced: 49~65 HR (T1BA~T5CA)
Double Reduced: 73~80 HR (DR8~DR10)
|
Product Detail
Product Equipment
Factory Show
Packing
Certificate
