Product Details:
|
| Technique: | Hot Rolled And Cold Rolled | Thickness: | 2 - 200 Mm |
|---|---|---|---|
| Length: | 12M, 6m, 3-12m | Grade: | 300 Series, 310S, 316Ti, 316L, 316, 304, 304L |
| Application: | Industry | Standard: | AISI,ASTM,DIN,JIS,BS,NB |
| Highlight: | 403 Stainless Steel Pipe,3/16" Stainless Steel Seamless Pipe,Welded Stainless Steel Round Pipe |
||

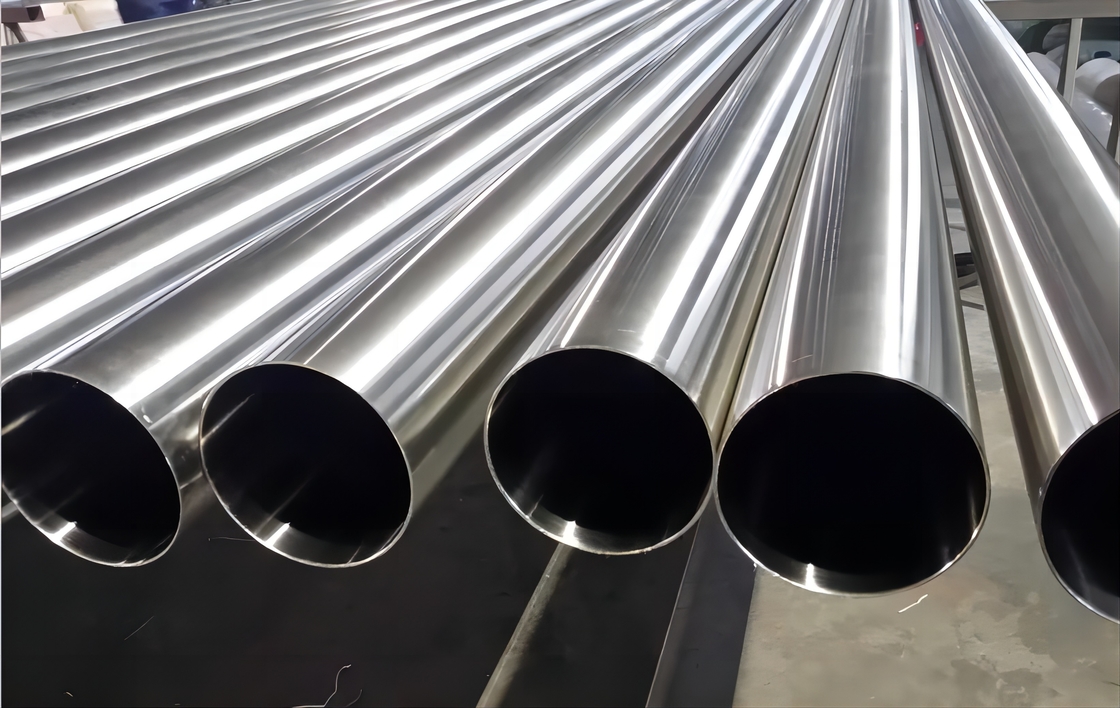

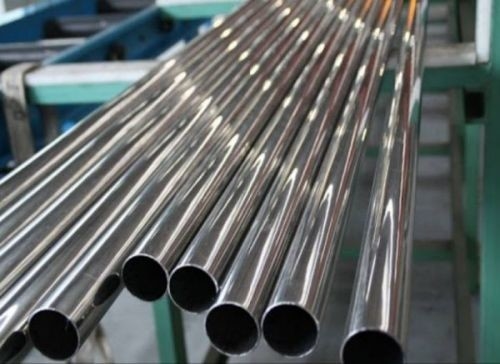

— Welded Seamless Stainless Steel Pipe —
Description
Welded Stainless Steel Pipe
· Material: 201,302,303,304,304l,316,316l,321,309s,310s,904l etc
· Size(round pipe): 9.5-219 mm or customized
· Size (square pipe): 10×10-150×100 mm or customized
· Size (oval pipe): 30×15,80×40 mm or customized
· Thickness: 0.24-3 mm
· Length: 6m or according to customer’s request
· Outer diameter: 8-219mm
· Tolerance: Outer diameter :±0.2mm Thickness :±0.02mm Length :±0.5mm
· Process method: Code drawn, annealed with nitrogen protection, ultrasonic,automatic shape, polished
· Finishing: A: sanded B: 400#-600# mirror C: hairline brushed D: TIN titanlum
· E : HL brushed & mirror (two kinds of finishing for one pipe)
| Standard: | JIS, ASTM JIS GB EN DIN | Place of Origin: | Jiangsu, China |
| Brand Name: | Lianzhong | Model Number: | customized |
| Type: | Welded, Welded Round Steel Pipe | Steel Grade: |
300 Series, 304,304L,309S, 310S,316,316Ti,317,317L,321,347,347H |
| Application: | Firefighting | Welding Line Type: | ERW |
| Outer Diameter: | 1016mm | Tolerance: | ±1% |
| Processing Service: |
Bending, Welding, Decoiling, Punching, Cutting, Moulding |
Grade: | 300 Series |
| Section Shape: | Round | Alloy Or Not: | Is Alloy |
| Surface Finish: | 2D, 2B, BA, No.3, No.4 | Invoicing: | by theoretical weight |
| Delivery Time: | 8-14 days | Product name: | Stainless Steel Pipe/tube 304pipe Stainless Steel Seamless |
| Shape: | Round Pipe Tube | Material: | 304/304L/316/316L Stainless Steel |
| Keyword: | Stainless Steel Sipe | Technique: | ERW Welded |
| Length: | 6m or as required | Material Grade: | 304,304L,309S,310S,316 |
| Surface: | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D |
| Grade |
C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
Si (Max) |
Cr | Ni | Mo | Nitrgeo(Max) | Cu/Other |
| 201 | 0.15 | 5.5-7.5 | 0.06 | 0.03 | 1.0 | 16.0-18.0 | 0.5-1.0 | -- | 0.25 | -- |
| 202 | 0.15 | 7.5-10.0 | 0.06 | 0.03 | 1.0 | 17.0-19.0 | 1.5-2.5 | -- | 0.25 | -- |
| 304 | 0.08 | 2.0 | 0.045 | 0.03 | 1.0 | 18.0-20.0 | 8.0-10.0 | -- | 1.0 | |
| 304L | 0.03 | 2.0 | 0.045 | 0.03 | 1.0 | 18.0-20.0 | 8.01-10.5 | -- | 0.1 | -- |
| 309S | 0.08 | 2.0 | 0.045 | 0.03 | 1.0 | 22.0-24.0 | 12.0-15.0 | -- | -- | -- |
| 310S | 0.08 | 2.0 | 0.045 | 0.03 | 1.5 | 24.0-26.0 | 19.0-22.0 | -- | -- | -- |
| 316L | 0.03 | 2.0 | 0.045 | 0.03 | 1.0 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.1 | |
| 321 | 0.08 | 2.0 | 0.045 | 0.03 | 0.75 | 17.0-19.0 | 9.0-12.0 | -- | 0.1 | -- |
| 2205 | 0.025 | 1.27 | 0.026 | 0.0015 | 0.58 | ≤22.50 | ≤5.20 | ≤3.10 | -- | -- |
| 904L | 0.02 | 2.0 | 0.045 | 0.035 | 1.0 | 19.0-23.0 | 23.0-28.0 | 4.0-5.0 | -- | -- |
| Grade | TS(Mpa) | YS(Mpa) | EL(%) | RRA(%) | Density |
| 201 | ≥520 | ≥275 | 55-60 | - | 7.93 |
| 202 | ≥590 | ≥245 | - | - | 7.93 |
| 304 | ≥520 | ≥205 | ≥40 | ≥60 | 7.93 |
| 304L | ≥520 | ≥205 | ≥40 | ≥60 | 7.93 |
| 309S | ≥515 | ≥205 | ≥40 | ≥50 | 7.98 |
| 310S | ≥520 | ≥205 | ≥40 | ≥50 | 7.98 |
| 321 | ≥520 | ≥205 | ≥40 | ≥50 | 7.98 |
| 316L | ≥485 | ≥170 | ≥30 | ≥40 | 7.98 |
Products Show
Application

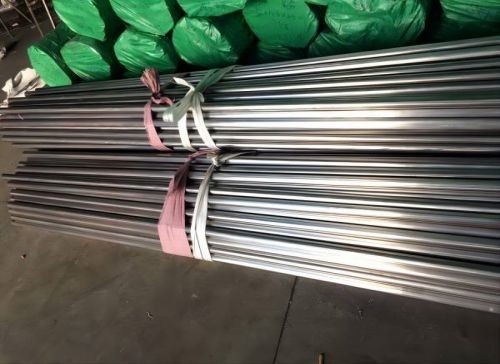

Packing
