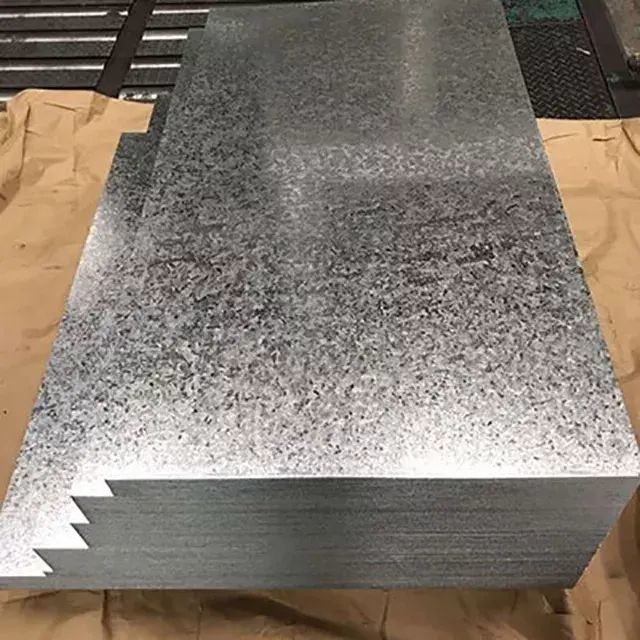

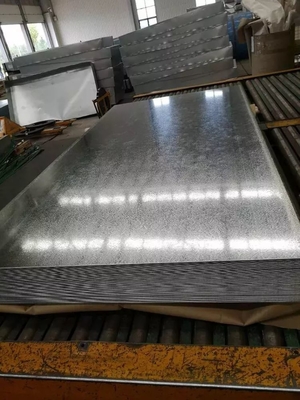

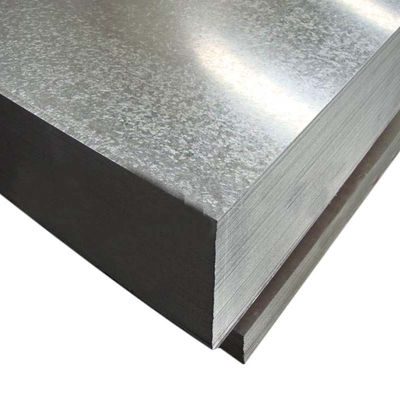

Astm A653 Galvanized Steel Sheets Gi Coil Dx51d + Z275

Certification
China Jiangsu Lianzhong Metal Products (Group) Co., Ltd certification
I'm Online Chat Now

Astm A653 Galvanized Steel Sheets Gi Coil Dx51d + Z275

Astm A653 Galvanized Steel Sheets Gi Coil Dx51d + Z275
Astm A653 Galvanized Steel Sheets Gi Coil Dx51d + Z275
Astm A653 Galvanized Steel Sheets Gi Coil Dx51d + Z275 Astm A653 Galvanized Steel Sheets Gi Coil Dx51d + Z275 Astm A653 Galvanized Steel Sheets Gi Coil Dx51d + Z275 Astm A653 Galvanized Steel Sheets Gi Coil Dx51d + Z275

Large Image :  Astm A653 Galvanized Steel Sheets Gi Coil Dx51d + Z275

Product Details:
Place of Origin: China
Brand Name: TISCO
Certification: SGS ISO BV
Model Number: SGCC,SGCH,G550,DX51D,DX52D,DX53D,S280GD,S350GD
Payment & Shipping Terms:
Minimum Order Quantity: 200kg
Price: Negotiable
Packaging Details: Exporting package/wooden box package/Or per customers' requirement
Delivery Time: 7-15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 tons per month

Astm A653 Galvanized Steel Sheets Gi Coil Dx51d + Z275

Description
Surface Treatment: No/Full Spangle Application: Construction
Width: 500-2000mm Technique: Hot Rolled Cold Rolled
Grade: SGCC,SGCH,G550,DX51D,DX52D,DX53D,S280GD,S350GD Standard: AISI ASTM
Length: 1-6m Zinc Coating: 20-275g/㎡
Highlight:

Galvanized Steel Sheets Gi Coil

,

Astm A653 Galvanized Steel Sheets Coil

,

Dx51d Galvanized Steel Sheets Coil



                       Galvanized Sheet Metal


• Zinc ionizes more easily than steel, and therefore acts as a sacrificial anode to protect the base steel from corrosion. This is called galvanic action. Even if the base steel is exposed, as for example at the sheet end or through a surface damage, the zinc coating surrounding the exposed part continues to protect the steel from rust.
• When zinc reacts to moisture in the air, it generates white rust. To prevent this, chromate-free and other special treatments are applied to the galvanized sheet. • The time to take for red rust to develop on the base steel is proportional to the amount of zinc coating.



Width 600-1500mm or as customer's requirements
Thickness 0.1~6mm, or as customer's requirements
Length as requirements
Zinc coating 40-275g/m2
Surface Light Oil, Unoil,dry, chromate passivated, non-chromate passivated
Material DX51D, DX52D, SGCC etc
Standard ASTMA653, JISG3302 etc
Spangle Regular spangle, minimal spangle, zero spangle, big spangle
Coil Weight 3-5 Tons or as customer requirements
Certifications ISO 9001 and SGS
Packing Industry standard packaging or according to client's requirement
Brand Ansteel, QPSS,JISCO, HXSCO,Chengde,Yongjin,Tsingshan, Shougang etc
Payment T/T, L/C, Western Union, Paypal, Apple Pay, Google Pay, D/A, D/P
Delivery time Up to order quantity



STEEL
GRADE
CHEMICAL COMPOSITION % MECHANIC PROPERTY C.B OF COATING
C Si Mn S p T.S Y.S E.L
  x103 x103 x102 x103 x103 Mpa Mpa % d=180
JIS G3302
SGCC
12 30 41 31 21 480 300 13 OK
JIS G3302
SGCH
12 10 21 18 6 680 650 20 OK
ASTM 653
CS.B
29 30 60 35 30 386 250-380 20 OK
DX51D+Z 20 21 18 1.8 11 355 245 38 OK
G550 12 6 73 5 17 715 654 8 OK
