Product Details:
|
| Name: | Stainless Steel Sheet | Thickness: | 0.2mm-100mm |
|---|---|---|---|
| Width: | 20-160mm. Customizable, 100mm-2000mm | Tolerance: | ±1% |
| Grade: | 300 Series,Customizable, 600 Series,200 Series,300 Series, 400 Series | Surface Treatment: | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D |
| MOQ: | As Your Requirement | Processing Service: | Welding, Punching, Cutting, Bending, Decoiling |
| Highlight: | 5.0mm Galvanized Stainless Steel Sheet,Mills Galvanized Stainless Steel Sheet Plate,202 Galvanized Stainless Steel Sheet |
||
— Stainless Steel Sheet —
Product Specification
Stainless steel sheet is alloy steel with a smooth surface, high weldability, corrosion resistance, polishability, heat resistance, corrosion resistance, and so on. Widely used in all walks of life, it is an important material for modern industry. Stainless Steel Sheet is divided into austenitic Stainless Steel Sheet, ferritic stainless steel, martensitic stainless steel, duplex stainless steel according to the tissue state.
Stainless steel sheets are important application materials in many fields. Its products have excellent performance in all aspects and a long service life. It has been widely used in machinery manufacturing, construction engineering, kitchen utensils manufacturing, rail vehicles and other industries.
|
Material
|
200 300 400 Series stainless steel
|
|
Grade
|
201 202 301 303 304 304L 309 309S 310 310S 316 316L 316Ti 317L 321 2205 2507 409 409l 410 410S 420 420J1 420J2 430 441 444 904L
|
|
Standard
|
AiSi ASTM JIS DIN EN BS
|
|
Tech
|
cold rolled / hot rolled
|
|
Thickness
|
Hot rolled: 3mm-16mm 16-150mm
Normal: 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0
As per customer’s request: 16-150mm Cold rolled: 0.3-6mm
Normal:0.3/0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0 As per customer’s request: 4.0/5.0/6.0 |
|
Width&Length
|
1000mm-6000mm, or as per customer’s request
Hot rolled: 1250*3000mm (4.1*10ft) 1500*3000mm (5*10ft) 1250*6000mm (4.1*19.6ft) 1500*6000mm (5*19.6ft) 1800*6000mm (5.9*19.6ft) 2000*6000mm(6.5*19.6ft) Cold rolled: 1000*2000mm (3.2*6.5ft) 1219*2438mm (4*8ft) 1500*3000mm (5*10ft) 1800 available 2000 available |
|
Place of Origin
|
China
|
|
Processing Service
|
Bending, Welding, Recoiling, Punching, Cutting
|
|
Tolerance
|
±1%
|
|
Surface Treatment
|
N0.1,2B,BA,6K, 8K, 12k, N0.4, HL, Mirrored,checkered etc
|
|
Payment
|
T/T terms, 30% pre-payment, 70% balance see B/L copy
|
|
Delivery Time
|
5-15 days for ordinary orders (standard orders ≦50 ton); specified orders needs final confirmation as per customer’s request
|
| Grade | C(%) | Si(%) | Mn(%) | P(%) | S(%) | Cr(%) | Ni(%) | N(%) | Cu(%) |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00-20.00 | 8.00-10.50 | ≤0.10 | / |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00-20.00 | 8.00-10.50 | ≤0.10 | / |
| 304H | 0.04-1.00 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00-20.00 | 8.00-10.50 | ≤0.10 | / |
| Grade |
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
Rate Of Reduction In Area (%) |
Density (G/Cm3) |
Hardness (HB) (HRB) (HV) |
| 304 | ≥515 | ≥205 | ≥40 | / | 7.93 |
≤201HBW;≤92HRB; ≤210HV |
| 34L | ≥515 | ≥205 | ≥40 | / | 7.93 | ≤187HB; ≤90HRB; ≤200HV |
| 304H | ≥515 | ≥205 | ≥40 | / | 7.93 | / |
Product Details
Surface
|
Surface Finished
|
Characteristics
|
application
|
||
|
NO.1
|
Finished by hot-rolling, smoother and pickling, characterized by white pickled surface.
|
Chemical industry equipment, Industrial tanks.
|
||
|
2B
|
Finished by anneal treatment, pickling after cold rolling, followed by skin pass line to more brighter and smoother surface.
|
General application medical instruments, Tableware.
|
||
|
BA
|
Bright anneal treatment after cold rolling.
|
Kichen utenstil, Kitchen ware,Architectural purpose.
|
||
|
NO.4(Satin)
|
Finished by incontinuous linear brushing
|
Architecture,industries,Escalators, Kitchen ware, Vehicles.
|
||
|

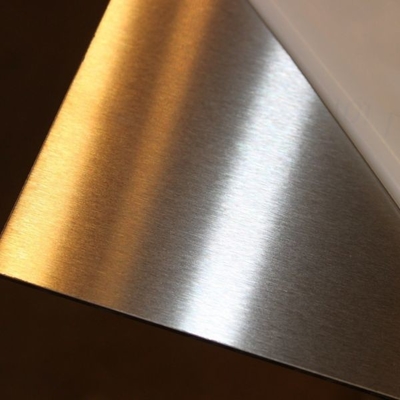

Hairline
|
Finished by continuous linear brushing
|
Architecture,industries,Escalators, Kitchen ware, Vehicles.
|
||
|

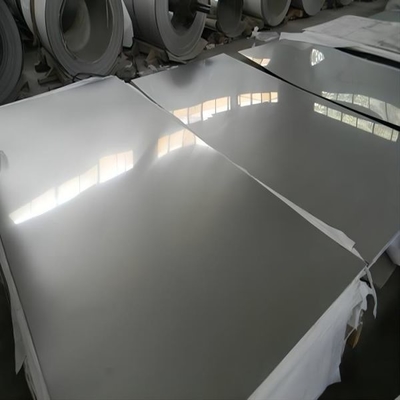

8K(mirror)
|
A mirror-like reflective surface by polishing with finer abrasives over 800 mesh.
|
Refletor, Mirror, Interior- Exterior decoration for building.
|
||
Production line

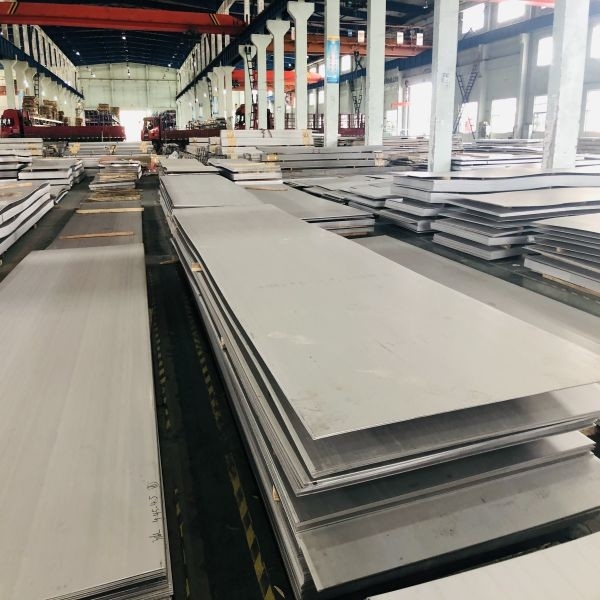

Our Warehouse
Packaging & Shipping
Application
Certificate
Customer Voice
Contact
