Product Details:
|
| Name: | Stainless Steel Sheet | Thickness: | 0.2mm-100mm |
|---|---|---|---|
| Width: | 20-160mm. Customizable, 100mm-2000mm | Tolerance: | ±1% |
| Grade: | 300 Series,Customizable, 600 Series,200 Series,300 Series, 400 Series | Surface Treatment: | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D |
| MOQ: | As Your Requirement | Processing Service: | Welding, Punching, Cutting, Bending, Decoiling |
| Highlight: | 12mm 304 Stainless Steel Sheet,Stainless Steel Sheet 904l Plate,Hairline Stainless Steel Sheet Plate |
||
— Stainless Steel Sheet —
Product Specification
Stainless steel plate surface is bright and clean, with high plasticity, toughness and mechanical strength, acid, alkaline gas,solution and other media corrosion.It is an alloy steel that does not rust easily, but is not absolutely rust free.Stainless steelplate refers to the atmosphere, steam and water and other weak medium corrosion of steel plate, and acid steel plate is acid,alkali, salt and other chemical corrosion medium corrosion of steel plate.
|
Product Name
|
stainless steel sheet
|
|
Thickness
|
0.3-100mm
|
|
Width
|
600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
|
|
Length
|
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
|
|
Standard
|
AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.
|
|
Technique
|
Hot rolled / cold rolled
|
|
Surface Treatment
|
2B, 2D, 4B, BA, HL, MIRROR, brush, NO. 1-NO. 4, 8K, and so on
|
|
Thickness tolerance
|
±0.01mm
|
|
Material
|
201, 202, 301, 302, 303, 304, 304L, 304H, 310S, 316, 316L, 317L, 321,310S 309S, 410, 410S,420, 430, 431, 440A,904L
|
|
Application
|
It is widely used in high temperature applications, medical devices, building materials, chemistry, food industry, agriculture,
ship components. It also applies to food, beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen. |
|
Container Size
|
20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High)
|
|
40ft GP: 12032mm(Length)x2352mm(Width)x2393mm(High)
|
|
|
40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High)
|
|
|
MOQ
|
1tons.We also can accept sample order.
|
|
Shipment time
|
Within 7-15 workdays after receiving deposit or L/C
|
| Grade | C(%) | Si(%) | Mn(%) | P(%) | S(%) | Cr(%) | Ni(%) | N(%) | Cu(%) |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00-20.00 | 8.00-10.50 | ≤0.10 | / |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00-20.00 | 8.00-10.50 | ≤0.10 | / |
| 304H | 0.04-1.00 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00-20.00 | 8.00-10.50 | ≤0.10 | / |
| Grade |
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
Rate Of Reduction In Area (%) |
Density (G/Cm3) |
Hardness (HB) (HRB) (HV) |
| 304 | ≥515 | ≥205 | ≥40 | / | 7.93 |
≤201HBW;≤92HRB; ≤210HV |
| 34L | ≥515 | ≥205 | ≥40 | / | 7.93 | ≤187HB; ≤90HRB; ≤200HV |
| 304H | ≥515 | ≥205 | ≥40 | / | 7.93 | / |
Product Details
Surface
|
Surface Finished
|
Characteristics
|
application
|
||
|
NO.1
|
Finished by hot-rolling, smoother and pickling, characterized by white pickled surface.
|
Chemical industry equipment, Industrial tanks.
|
||
|
2B
|
Finished by anneal treatment, pickling after cold rolling, followed by skin pass line to more brighter and smoother surface.
|
General application medical instruments, Tableware.
|
||
|
BA
|
Bright anneal treatment after cold rolling.
|
Kichen utenstil, Kitchen ware,Architectural purpose.
|
||
|
NO.4(Satin)
|
Finished by incontinuous linear brushing
|
Architecture,industries,Escalators, Kitchen ware, Vehicles.
|
||
|
Hairline
|
Finished by continuous linear brushing
|
Architecture,industries,Escalators, Kitchen ware, Vehicles.
|
||
|
8K(mirror)
|
A mirror-like reflective surface by polishing with finer abrasives over 800 mesh.
|
Refletor, Mirror, Interior- Exterior decoration for building.
|
||
Production line

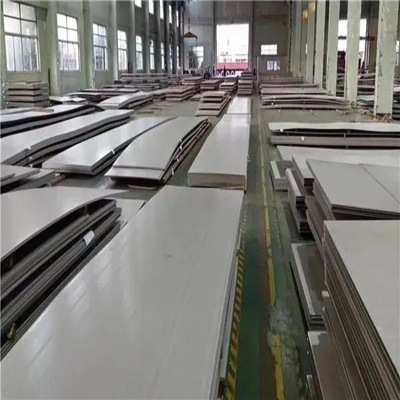

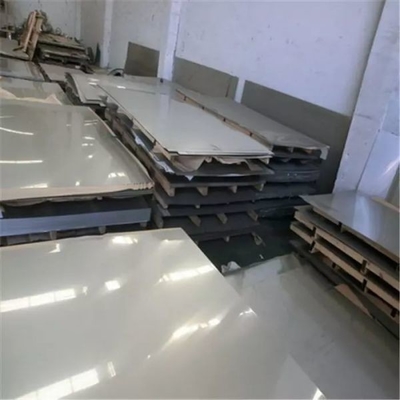

Our Warehouse
