DX51 Z100 Z350 SGCC Galvanized Steel Strip JIS G550 G40 G60 Z275 14 16 Gauge

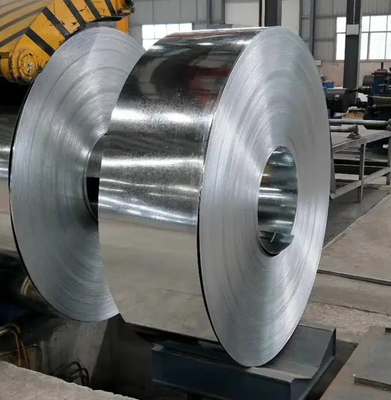

Large Image : DX51 Z100 Z350 SGCC Galvanized Steel Strip JIS G550 G40 G60 Z275 14 16 Gauge

Product Details:

Place of Origin:	Jiangsu,China
Brand Name:	LIAN ZHONG
Certification:	ISO9001 14001 BV TUV PED DNV etc
Model Number:	DX51D, DX52D, DX53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(5

Payment & Shipping Terms:

Minimum Order Quantity:	1 MT
Price:	Negotiable
Packaging Details:	Exporting package/wooden box package/Or per customers’ requirement
Delivery Time:	3~10 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	8000MT/Month

Contact Now

DX51 Z100 Z350 SGCC Galvanized Steel Strip JIS G550 G40 G60 Z275 14 16 Gauge

Description

Product Name:	DX51d DX52D Hot Dip Galvanized Steel Strip Coil	Technique:	Hot Rolled Based
Standard:	EN GB AISI ASTM Etc	Thickness:	0.12mm~4.5mm
Zinc Coating:	Z30g/m2-Z350g/m2	Material:	Q195,Q235,Q355,DX51D ,SGCC,SGCH
Highlight:	Galvanized Strip coil 0.12mm , SGCC Galvanized Steel Strip coil , Z350 Galvanized Steel Strip coil

Dx51 Z100 Z350 Zinc Coating Galvanized Steel Strip SGCC Jis G550 G40 G60 Z275 14 16 18 20 22 24 26 28 Gauge

Description

The JIS G550 standard specifies the mechanical and chemical properties of the galvanized steel strip, ensuring its adherence to the rigorous quality requirements. It guarantees that the steel strip meets the necessary strength, formability, and corrosion resistance criteria for a wide range of applications.

The galvanized steel strip is produced through a hot-dip galvanizing method, where the steel strip is immersed in a bath of molten zinc. This process creates a protective zinc coating on the surface of the steel, providing excellent resistance against rust and corrosion.

Product Name	Galvanized Steel Coil/Sheet/Strip/Plate/Roll; GI Steel Coil/Sheet; SGCC
Category	Hot Dip galvanized steel coil; Electro-galvanized steel coil; galvanized Steel Coil
Standard	EN, DIN, JIS, ASTM
Thickness & Tolerance	0.12-6.00mm (+0/-0.001mm), or customized as required
Width & Tolerance	600-1500 mm (+/-0.06mm), or customized as required
Hardness	Soft (normal), Hard, Full hard
Zinc Coating	30-275 G/M², or customized as required
Spangle	Normal Spangle coating(NS), Minimized Spangle coating(MS), Spangle-Free(FS)
Surface Treatment	Anti-Finger printing, Chromated, Oiled, Non-Oiled
Steel Grade	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD , S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80 (550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
Application	Boiler Plate,Container Plate,Flange Plate,Ship Plate.

Chemical Composition
GRADE	C	Si	Mn	P	S	Ti
SGCC/DX51D+Z	≤0.10	≤0.50	≤0.60	≤0.10	≤0.030	≤0.020
DX52D+Z	≤0.10	≤0.50	≤0.60	≤0.10	≤0.030	≤0.020
SGCD/DX53D+Z	≤0.10	≤0.30	≤0.50	≤0.05	≤0.030	≤0.020
SGCE/DX54D+Z	≤0.10	≤0.30	≤0.30	≤0.03	≤0.020	≤0.020
DX56D+Z	≤0.10	≤0.30	≤0.30	≤0.03	≤0.020	≤0.020
Structural	≤0.20	≤0.60	≤1.70	≤0.10	≤0.045

Details

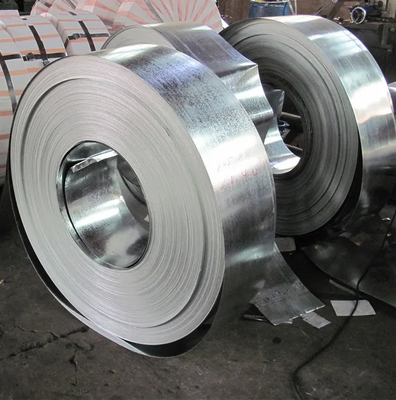

DX51 Z100 Z350 SGCC Galvanized Steel Strip JIS G550 G40 G60 Z275 14 16 Gauge 0

DX51 Z100 Z350 SGCC Galvanized Steel Strip JIS G550 G40 G60 Z275 14 16 Gauge 1

Packing&Delievery

Our certifications

Our Warehouse

FAQ

1.Do you provide samples? is it free or extra?

A: Yes, we could offer the sample for free charge.but the customers have to pay the sample courier cost.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3.What can you buy from us?
Seamless Pipe,Precision Steel Pipe,Galvanized Pipe,Steel Plate,etc.
