Product Details:
|
| Product Name: | Galvanized Steel Sheet | Grade: | SGCC, DX51D, DX52D, DX53D, DX54D, SGCD |
|---|---|---|---|
| Width: | 1000 - 1500mm | Thickness: | 0.3 - 3mm |
| Sample: | Provided | Oiled Or Non-oiled: | Non-oiled |
| Highlight: | Gi Gl Galvannealed Steel Sheet,DX52D Galvannealed Steel Sheet,26 Gauge Galvannealed Steel Sheet |
||

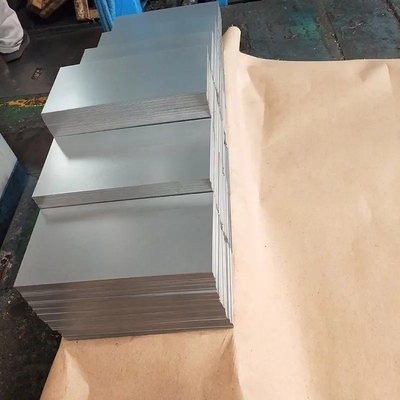

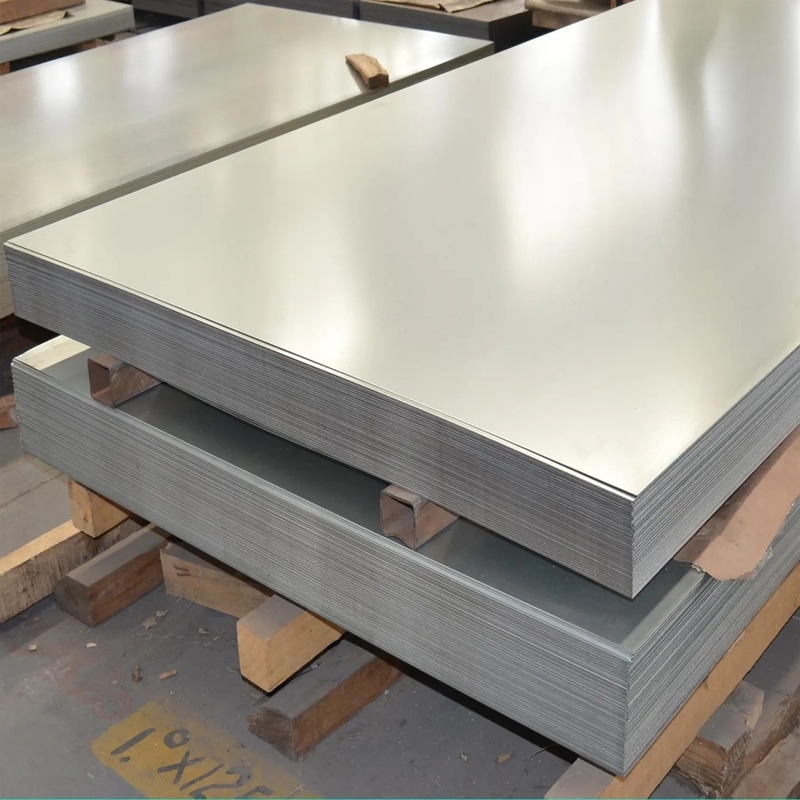

Galvanized steel sheet refers to a steel sheet with a layer of zinc on the surface for aesthetics and anti-rust purpose. It is most widely used in buildings and also applied as the base metal of color coated steel. Due to the different galvanizing processes, the zinc spangles will be different, including big spangles, regular spangles, small spangles, and zero spangles.
|
Technical Standard
|
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
|
|
Steel Grade |
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440,
SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
|
Type
|
Galvannealed Steel Sheet/Plate
|
|
Thickness
|
0.12 - 6.00mm or customer's requirement
|
|
Width
|
600mm - 1500mm, according to customer's requirement
|
|
Type of Coating
|
Hot Dipped Galvanized Steel(HDGI)
|
|
Zinc Coating
|
30 - 275g/m2
|
|
Surface Treatment
|
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
|
|
Surface Structure
|
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
|
|
Quality
|
Approved by SGS,ISO
|
|
ID
|
508mm / 610mm
|
|
Coil Weight
|
3 - 20 metric ton per coil
|
|
Package
|
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement
|
|
Export Market
|
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc
|
01.Anticorrosive:
Many years in heavy industrial areas, in the ocean, in the suburbs and in cities.
02.Cheap:
The cost of hot-dip galvanizing is lower than that of other coatings.
03.Reliable:
The zinc coating is metallurgically bonded to the steel and forms part of the steel surface,so the coating is more durable.
04.Strong toughness:
The galvanized layer forms a special metallurgical structure that can withstand mechanical damage during transportation and use.
05.Comprehensive protection:
Every part of the plated piece can be galvanized,and is fully protected even in depressions,sharp corners,and hidden places.
06.Save time and energy:
Galvanizing process is faster than other coating methods.
Packaging and Shipping for Galvanized Steel Sheet:
Galvanized Steel Sheet is typically packaged in standard cardboard boxes and shipped with a reliable carrier. All shipments are carefully tracked and monitored to ensure that the product arrives undamaged.
Does the product have quality inspection before loading?
Of course, all our products are strictly tested for quality before packaging.
How to pack the products?
The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
What are the certifications for your products?
We have ISO 9001, SGS, EWC and other certifications.
