Product Details:
|
| Name: | Z40-Z275 Coated Galvanized Steel Coil | Length: | Customized |
|---|---|---|---|
| Thickness: | 0.12-5 | Surface: | Oil,Passivation, Chromated, Skin-passed |
| Grade: | SGCC,DX51D,ASTMA36,JISG3302 | Application: | Cutting Sheets, Making Corrugated Sheets |
| Standard: | ASTM, AiSi, ASTM, Bs, DIN, GB, JIS | Type: | Manufacturer |
| High Light: | Coated Galvanized GI Sheet,Z275 Galvanized GI Sheet,galvanized coil stock SGCC |
||

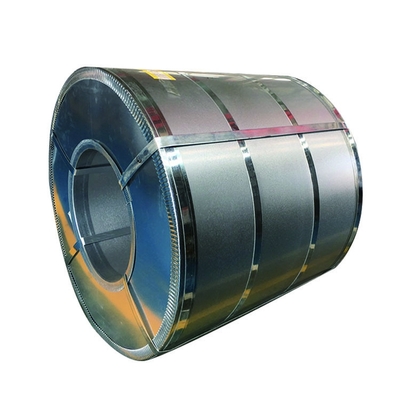

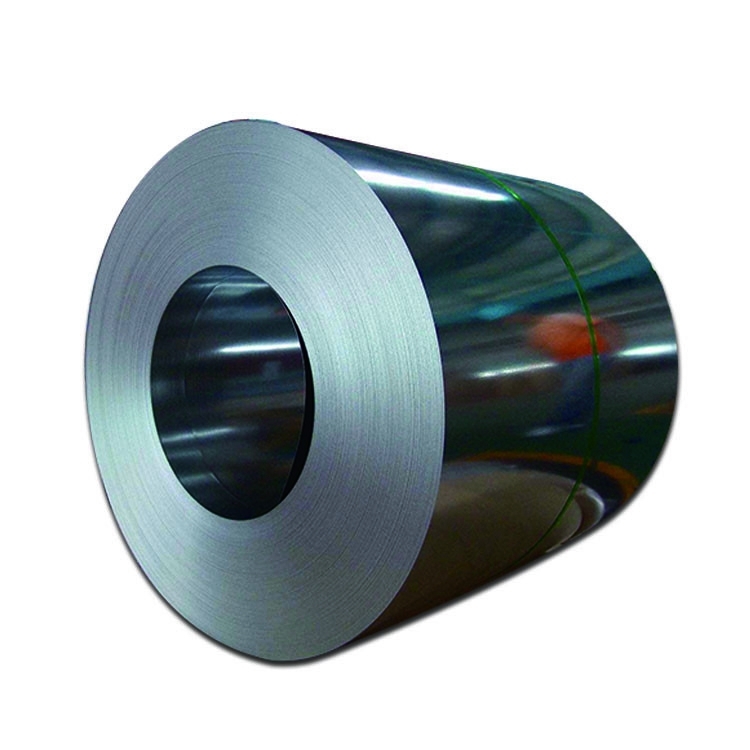

Z40-Z275 Coated Galvanized Steel Coil Galvanized GI Sheet Mid Hard SGCC/DX51D/ASTMA36/JISG3302
Description:
The galvanized steel coil that most construction workers use is often found in roofing applications. There, it is used as a protective cover or barrier over ridges and valleys in the roof system. The coil is rolled out flat on the roof, and bent either over the top of a ridge or into the crease in a valley, to protect the seam in the roof’s sheeting from exposure to the elements. It also creates a watershed for the runoff of rain and melting snow or ice.
ltem | SGCC Galvanized Plate Price Material Steel GI |
Grade | DX51D,SGCC,DX52D,ASTMA653,JISG3302 |
Thickness | 0.11-4.0mm |
Width | 600-1500 mm |
Zinc Coating | 40-275g/m2 |
Surface Treatment | Light Oil, Unoil,dry, chromate passivated, non-chromate passivated. |
Spangle | Regular spangle, minimal spangle, zero spangle, big spangle |
Coil Weight | 3-5 Tons or as customer requirements |
Coil ID | 508/610 mm |
| Chemical Composition | ||||||
| GRADE | C | Si | Mn | P | S | Ti |
| SGCC/DX51D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| DX52D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| SGCD/DX53D+Z | ≤0.10 | ≤0.30 | ≤0.50 | ≤0.05 | ≤0.030 | ≤0.020 |
| SGCE/DX54D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| DX56D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| Structural | ≤0.20 | ≤0.60 | ≤1.70 | ≤0.10 | ≤0.045 | |
