Product Details:
Payment & Shipping Terms:
|
| Product Name: | 0.23mm-3.5mm Dx51d 40g - 275g / M2 Znic SGCC Hot Galvanized Steel Coils Hot Rolled | Width: | 600mm-2200mm, As Your Request Regular Width 1000mm, 1250mm, 1500mm |
|---|---|---|---|
| Standard: | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. | Grade: | SGCC/ CGCC/ DX51D+Z |
| Zinc Coating: | 40g - 275g / M2 | Application: | Construction/Indutry/Building |
| Technique: | Hot Rolled Based | Thickness: | 0.23 ~ 3.5mm |
| Highlight: | SGCC Hot Dipped Galvanised Coil,Znic Hot Dipped Galvanised Coil,hot dipped steel coil DX51d |
||

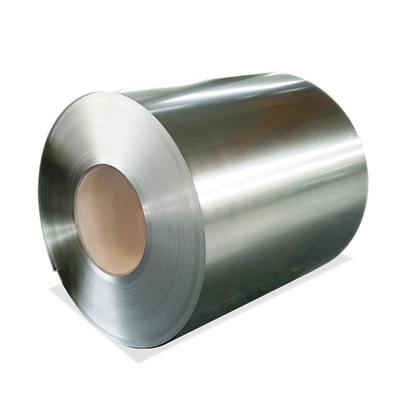

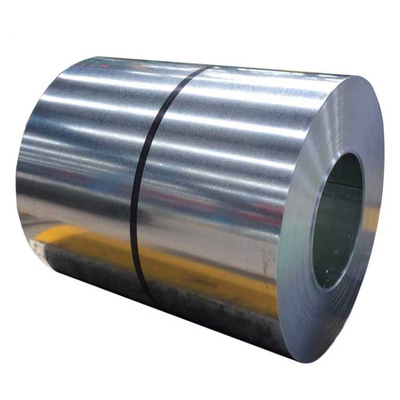

0.23mm-3.5mm Dx51d 40g - 275g / M2 Znic SGCC Hot Galvanized Steel Coils Hot Rolled
Description
The use of galvanized/galvannealed products in the automotive industry is growing over the years because of the requirements for improved corrosion resistance and paint adherence. Most automotive manufacturers use galvanized products for both exterior and interior parts, enabling them to guarantee up to life-time warranty against corrosion. Hot dip galvanized steels are used for various components of the car body. Structural hot dip galvanized/galvannealed steels are used for a wide range of applications in the building sector. Depending on the atmospheric conditions and the desired corrosion resistance, the steels which need different coating thicknesses are mainly used in cladding, roofs, doors, fences, profiling and components for agricultural machinery applications.
|
Standard
|
AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.
|
|
Material
|
SGCC/ CGCC/ DX51D+Z
|
|
|
Hot Rolled Thickness:0.12 ~ 3.00 mm
As Your Request
|
|
Width(mm)
|
600mm-2200mm, As Your Request
Regular width 1000mm, 1250mm, 1500mm
|
|
Tolerance
|
Thickness: ±0.01 mm
Width: ±2 mm
|
|
Coil ID
|
508-610mm or as per your request
|
|
Coil Weight
|
3~5 Tons or as per your request
|
|
Zinc Coating
|
30g - 275g / m2
|
|
Spangle
|
Big spangle,Regular spangle,Mini spangle,Zero spangle
|
|
Surface Treatment
|
Coated,Galvanized,Clean, Blasting and Painting according to customer
|
| Chemical Composition | ||||||
| GRADE | C | Si | Mn | P | S | Ti |
| SGCC/DX51D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| DX52D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| SGCD/DX53D+Z | ≤0.10 | ≤0.30 | ≤0.50 | ≤0.05 | ≤0.030 | ≤0.020 |
| SGCE/DX54D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| DX56D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| Structural | ≤0.20 | ≤0.60 | ≤1.70 | ≤0.10 | ≤0.045 | |
Product Details
Packing & Shipping
• PE waterproof paper.
• 2 inside edge protection rings.
• 2 outside edge protection rings.
• 2 side protection disks.
• Inside protection cover (galvanized sheet).
• Outside protection cover(galvanized sheet).
• 3 circumferential straps.
• 4 radial staps.
Delivery :By container/ bulk
Our certificates
Recommend products
FAQ
Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication,CE ISO.
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q: Accepted terms of dellvery ?
A:We accept EXW.FOB.CFR.CIF.etc. you can choose the one which is the most convenient or cost effective for you
Q: How to order ?
A:Please send us your purchase order by email or fax. Or you can ask us to send a proforma invoice for your order.We need to know the following inforation for your order.
