AZ150 AL-ZN Hot Dipped Galvanized Coil Spangle Zero Spangle Gi Sheet

Name: AZ150 AL-ZN Hot Dipped Galvanized Coil Spangle Zero Spangle Gi Sheet
Brand: Jiangsu Lianzhong Metal Products (Group) Co., Ltd
SKU: Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(5
Price: 3,450.00 USD
Availability: InStock

All Products

Galvanized Steel Coil
(73)

Galvanized Steel Sheet
(71)

PPGI Galvanized Steel Coil
(52)

Galvanized Steel Bar
(22)

Galvanized Steel Pipe
(53)

Angle Steel
(17)

Galvanized Steel Strip
(26)

Galvanised Steel Sections
(18)

Hot Dipped Galvanized Coil
(13)

Spring Steel Strip
(1)

Aluminized Sheet
(23)

Gi Chequered Plate
(13)

Galvanized Flat Steel
(13)

Electrogalvanized Steel
(20)

Color Coated Plate
(14)

Electrolytic Tinplate Coil
(12)

HR Steel Coil
(21)

Stainless Steel Materials
(58)

Best Products

ASTM G350 G550 Regular Spangle Galvanized Steel Coil For Automobile Architecture

DX51D Z275 Z350 Hot Dipped Galvanized Steel Coil Sheet Strip Aluzinc AZ150 Zero Spangle

Z150 Ma Steel AISI GB Hot Dipped Galvanized Coil Soft Hard 610 ID ISO IBR

Certification

I'm Online Chat Now

AZ150 AL-ZN Hot Dipped Galvanized Coil Spangle Zero Spangle Gi Sheet

Large Image : AZ150 AL-ZN Hot Dipped Galvanized Coil Spangle Zero Spangle Gi Sheet

Product Details:

Place of Origin:	Jiangsu,china
Brand Name:	LIANZHONG
Certification:	SGS ISO BV
Model Number:	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(5

Payment & Shipping Terms:

Minimum Order Quantity:	1MT
Price:	Negotiable
Packaging Details:	Exporting package/wooden box package/Or per customers' requirement
Delivery Time:	4~14 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	2000MT/Month

Contact Now

AZ150 AL-ZN Hot Dipped Galvanized Coil Spangle Zero Spangle Gi Sheet

Description

Product Name:	GI Hot Dipped Galvanized Coil With Spangle Zero Spangle AZ150 AL-ZN	Grade:	CS-B,DX51D+Z/SGCC/DX51D/SPCC
Width:	100mm~2500mm	Standard:	GB,JIS,ASTM,AISI,DIN
Zinc Coating:	40g-275g	Spangle:	Big Small Zero
Thickness:	0.12MM-1.2MM,1.2MM-6MM	Coil Weight:	3-8 Tons For Galvalume Steel Coil
Highlight:	GI Hot Dipped Galvanized Coil , Hot Dipped Galvanized Coil Spangle , zero spangle gi sheet AZ150

GI Hot Dipped Galvanized Coil With Spangle Zero Spangle AZ150 AL-ZN

Description:

For galvanized coils, the steel sheet is immersed in a molten zinc bath to make a sheet of zinc coated on its surface. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously immersed in a plating tank with molten zinc to make galvanized steel plate; alloyed galvanized steel plate. This kind of steel plate is also produced by hot dip method, but immediately after it is out of the tank, it is heated to about 500 ℃ to form an alloy film of zinc and iron. This galvanized coil has good paint adhesion and weldability.

Standard	AiSi, ASTM, DIN, GB, JIS
Grade	SGCC, SGCD, Q195, SGCH, ASTM, A792, SPCC, FULL HARD
Type	GI/GL/PPGI/PPGL Coils/Sheets, Corrugated Coila/Sheets
Thickness	Coils: 0.12-6.0mm
Width	Coils: 600-1800mm
Zinc coating	Z20~275g/m2
Type of coating	Galvanized, Galvalume, PPGI, PPGL
Processing Service	Bending, Welding, Decoiling, Cutting, Punching
Package	Standard sea worthy packaging or as customers' requirements
Delivery time	4—14 days after deposit
MOQ	1TON
Payment	T/T, L/C,Western Union

Chemical Compose	Grade	C %	Si %	Mn %	P %	S %
	Q195	≤0.12	≤0.30	≤0.50	≤0.035	≤0.035
	Q235	≤0.22	≤0.35	≤1.4	≤0.035	≤0.035
	DX51D	≤0.12	≤0.50	≤0.60	≤0.1	≤0.045
	SGCC	≤0.15	-	≤0.80	≤0.05	≤0.03
Mechanical Property	Grade	Yield Strength MPA		Tensile Strength MPA		Elongation
	Q195	≥195		315-430		22%
	Q235	≥235		370-500		19%
	DX51D	-		270-500		22%
	SGCC	≥205		≥270		22%

Steel Grade	Chemical composition %
	C	Si	Mn	P	S	Al
	C	Si	Mn	≤		≥
20#	0.17-0.24	0.17-0.37	0.35-0.65	0.035	0.035	/
45#	0.42-0.50	0.17-0.37	0.50-0.80	0.035	0.035	/
Q345B	≤0.2	≤0.5	1.00-1.60	0.03	0.03	/
Q345D	≤0.2	≤0.5	1.00-1.60	0.03	0.03	0.015
25Mn	0.22-0.29	0.17-0.37	0.70-1.00	0.035	0.035	/
27SiMn	0.24-0.32	1.10-1.40	1.10-1.40	0.035	0.035	/
ST52	≤0.22	≤0.55	≤1.6	0.025	0.025	/
SAE1026	0.22-0.28	0.15-0.35	0.60-0.90	0.04	0.05	/

Product Shows:

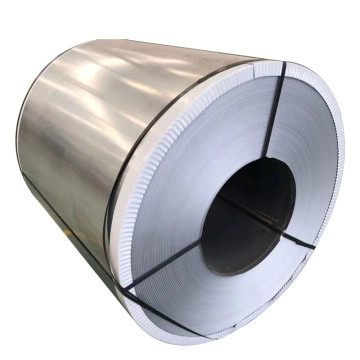

AZ150 AL-ZN Hot Dipped Galvanized Coil Spangle Zero Spangle Gi Sheet 0

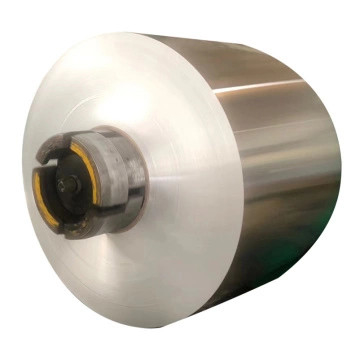

AZ150 AL-ZN Hot Dipped Galvanized Coil Spangle Zero Spangle Gi Sheet 1

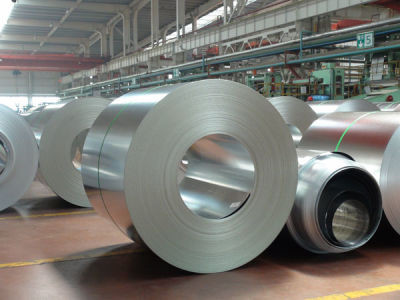

AZ150 AL-ZN Hot Dipped Galvanized Coil Spangle Zero Spangle Gi Sheet 2

Quality Inspection:

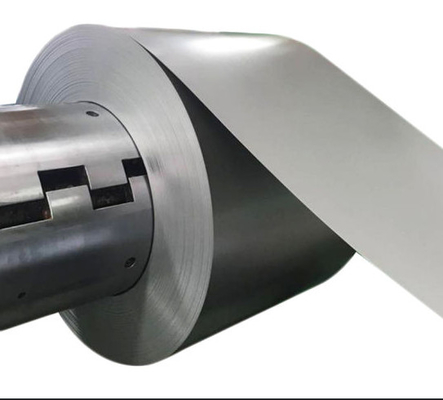

AZ150 AL-ZN Hot Dipped Galvanized Coil Spangle Zero Spangle Gi Sheet 3

Surface:

Packing and Shipping:
AZ150 AL-ZN Hot Dipped Galvanized Coil Spangle Zero Spangle Gi Sheet 5

Certification:

Application:

Workshop Detail:

AZ150 AL-ZN Hot Dipped Galvanized Coil Spangle Zero Spangle Gi Sheet 10

About Us:

AZ150 AL-ZN Hot Dipped Galvanized Coil Spangle Zero Spangle Gi Sheet 11

FAQ:
Q: Can you arrange the shipment?
A:Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q: How long is your delivery time?
A: Generally it is 4-14 days if we have the exact goods in our stock. If not, it will take around 25-35 days to get goods ready for delivery.

Q:How can I get the price?

A:Please send us the exact details of products inquiry, such as material grade, size(thickness, width, quantity), etc. Then we will quote the best price as you accordingly.

Q: Can you provide sample?

A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly. We will return the sample fee after you make an order.

Q:Can we visit your factory?
A:Yes, of course, we welcome you to visit our factory to check our production lines and know more about our capacity, quality.

Q:How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit .
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
