ISO 9001 2000 Hot Dip Gi Pipe Schedule 40 Hot Dipped Galvanized Steel Pipe 0.5mm-10mm

Large Image : ISO 9001 2000 Hot Dip Gi Pipe Schedule 40 Hot Dipped Galvanized Steel Pipe 0.5mm-10mm

Product Details:

Place of Origin:	Jiangsu,china
Brand Name:	LIANZHONG
Certification:	SGS ISO BV
Model Number:	Q195/Q215/Q235/Q345/S235JR/GR.B-D/STK500

Payment & Shipping Terms:

Minimum Order Quantity:	1MT
Price:	Negotiable
Packaging Details:	Exporting package/wooden box package/Or per customers' requirement
Delivery Time:	3~15 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	2000MT/Month

Contact Now

ISO 9001 2000 Hot Dip Gi Pipe Schedule 40 Hot Dipped Galvanized Steel Pipe 0.5mm-10mm

Description

Product Name:	ISO 9001:2000 Hot Dip Galvanized Steel Pipe Round Thick 0.5mm-10mm	Weight:	5-15T,15-25T
Thickness:	1.0mm-22 Mm	Certification:	BV,ISO-9001-2008
Material:	Hot/cold Rolled Carbon Steel	Dimension(lwh):	According To Actual Size
Highlight:	ISO 90012000 hot dip gi pipe , hot dip galvanized pipe manufacturers , schedule 40 hot dipped galvanized steel pipe

ISO 9001:2000 Hot Dip Galvanized Steel Pipe Round Thick 0.5mm-10mm

Description:

Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life. The hot-dip galvanized steel pipe base and hot-dip galvanized steel pipe undergo complex physical and chemical anti-galvanizing to form a zinc-iron alloy layer with a tight corrosion-resistant structure.
The alloy layer is formed by combining the pure zinc layer and the steel pipe matrix. Hot dip galvanizing is one of the most excellent electroplating methods for protecting steel substrates. It is the liquid state of zinc. After quite complex physical and chemical action, not only a thick pure zinc layer is plated on the steel, but also a zinc-iron alloy layer is formed. This method not only has the corrosion resistance of galvanizing, but also has strong corrosion resistance unmatched by galvanized due to the zinc-iron alloy layer.

Product Name	Hot Dipped Galvanised Iron pipe/Galvanized Steel Tubes
Material	A53 GR.A,BS387
Size	1/2"-48" (DN15mm-1200mm)
Certificates	API5L, ISO 9001:2008, SGS, BV, CCIC.
Standard	GB/T3091-2001 , BS 1387-1985 , DIN EN10025 , EN10219 , JIS G3444:2004 , ASTM A53 SCH40/80/STD , BS- EN10255-2004
Wall thickness	0.8MM-12MM
Surface Treatment	galvanized, anti-corrosion coated.
Pipe Ends	Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD). Iron protector (large OD).
Marking	Standard marking, or according to your request. Marking Method: Spray white paint
Pipe Length	1. Single Random Length and double Random Length. 2. SRL:3M-5.8M DRL:10-11.8M or As clients requested length 3. fixed length(5.8m, 6m, 12m)
Packaging	Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; wooden cases; waterproof woven bag.
Test	Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection,hydraulic testing , X-ray Test.
Application	liquid delivery,Structure pipe,construction, petroleum cracking,oil pipe,gas pipe
Advantages	1.Reasonable price with excellent quality 2.Abundant stock and prompt delivery 3.Rich supply and export experience, sincere service 4.Reliable forwarder, 2-hour away from port.

Chemical Compose	Grade	C %	Si %	Mn %	P %	S %
	Q195	≤0.12	≤0.30	≤0.50	≤0.035	≤0.035
	Q235	≤0.22	≤0.35	≤1.4	≤0.035	≤0.035
	DX51D	≤0.12	≤0.50	≤0.60	≤0.1	≤0.045
	SGCC	≤0.15	-	≤0.80	≤0.05	≤0.03
Mechanical Property	Grade	Yield Strength MPA		Tensile Strength MPA		Elongation
	Q195	≥195		315-430		22%
	Q235	≥235		370-500		19%
	DX51D	-		270-500		22%
	SGCC	≥205		≥270		22%

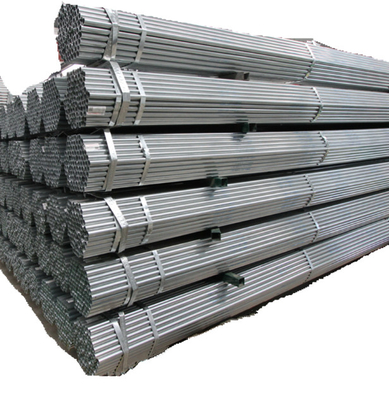

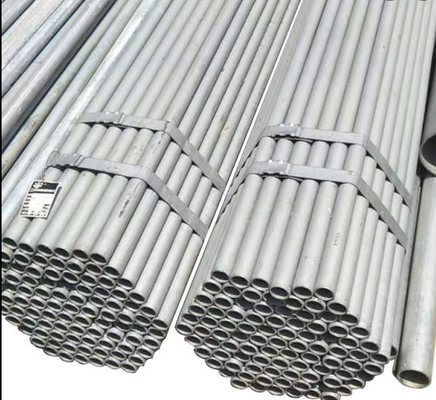

Product Shows:
ISO 9001 2000 Hot Dip Gi Pipe Schedule 40 Hot Dipped Galvanized Steel Pipe 0.5mm-10mm 0

Quality Inspection:

Packing and Shipping:

Certification:

Application:

Related Products:

Market:

FAQ:
Q: Can you arrange the shipment?
A:Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q: Will you delivery the goods on time?

A: Yes, we promise to provide best quality products and delivery on time. Honesty is our company's tenet .

Q:Can we get the some samples?Any charges?
A: Yes, you can get available samples in our stock.Free for real samples, but customers need to pay the freight cost.

Q:How can I get the price?

A:Please send us the exact details of products inquiry, such as material grade, size(thickness, width, quantity), etc. Then we will quote the best price as you accordingly.
