Product Details:
|
| Name: | Round Hot Dip Galvanized Steel Pipe | Technique: | Hot Rolled |
|---|---|---|---|
| Out Diameter: | 20mm-610mm | Tolerance: | Control With In The Standard, OD:+-1%, WT:+-10% |
| Standard: | ASTM A106, ASTM A53, API 5L Gr.B, DIN17175,DIN1629 | Surface Treatment: | Galvanized |
| Highlight: | DN15 Galvanised Steel Tubing,Hot Dipped GI Galvanised Steel Pipe,Dx54D Galvanised Steel Tubing |
||

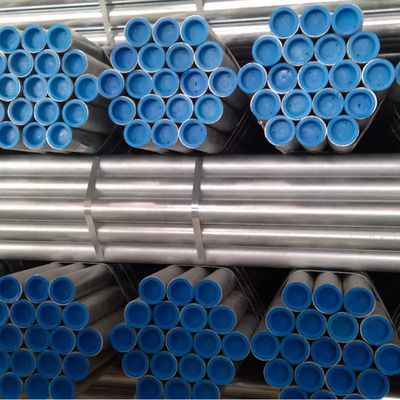

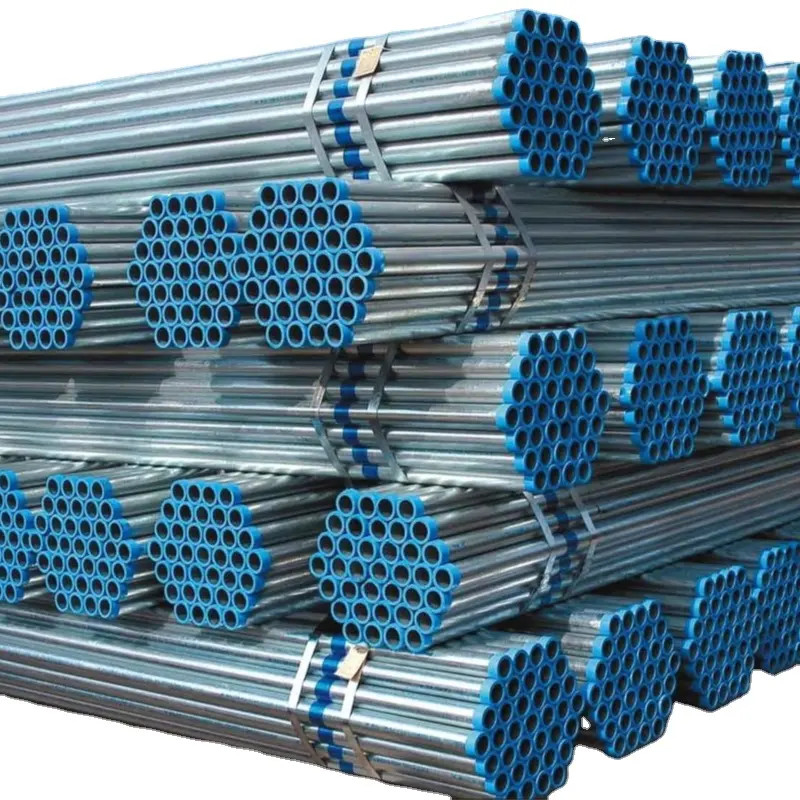

DN15-DN200 Hot Dipped GI Galvanised Steel Pipe Round Steel Tubing Dx51D Dx52D Dx53D Dx54D Seamless
Detail:
The hot-dipped GI galvanized steel pipe is a round steel tubing that has undergone a galvanization process, providing enhanced corrosion resistance and durability. It is made from various grades of steel, including Dx51D, Dx52D, Dx53D, and Dx54D, which are commonly used in galvanizing applications.
The galvanization process involves immersing the steel pipe in a bath of molten zinc, forming a protective zinc coating on its surface. This coating acts as a barrier against corrosion, extending the lifespan of the steel pipe and making it suitable for outdoor and corrosive environments.
The Dx51D, Dx52D, Dx53D, and Dx54D designations refer to specific grades of steel that meet certain chemical composition and mechanical property requirements. These grades are commonly used in galvanized steel products due to their excellent formability, weldability, and corrosion resistance.
|
Product Name
|
Galvanized Steel Pipe
|
|
Standard
|
ASTM A106, ASTM A53, API 5L Gr.B, DIN17175,DIN1629
|
|
Outer Dia:
|
20mm-610mm
|
|
Wall Thickness
|
4mm-70mm
|
|
Dia Tolerance
|
Control with in the standard, OD:+-1%, WT:+-10%
|
|
Materials
|
Dx51d,Dx52D,Dx53D,DC51D,DC52D,DC53D,SGCC,Sgcd,Sgce
|
|
Inspection
|
ISO,BV,SGS,MTC
|
|
Packing
|
Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit forall kinds of transport,or as required
|
|
Supply Ability
|
1000 metric tons/month
|
|
MOQ
|
5metric ton,sample order accepted
|
|
Shipment time
|
Within 7-10 workdays after receiving deposit or L/C
|
|
Payments
|
T/T,LC
|
| Chemical Composition | ||||||
| GRADE | C | Si | Mn | P | S | Ti |
| SGCC/DX51D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| DX52D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| SGCD/DX53D+Z | ≤0.10 | ≤0.30 | ≤0.50 | ≤0.05 | ≤0.030 | ≤0.020 |
| SGCE/DX54D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| DX56D+Z | ≤0.10 | ≤0.30 | ≤0.30 | ≤0.03 | ≤0.020 | ≤0.020 |
| Structural | ≤0.20 | ≤0.60 | ≤1.70 | ≤0.10 | ≤0.045 | |
Packaging & Shipping:
Application:
certificate:
Related products:
FAQ:
1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
