Product Details:
|
| Surface Structure: | Oil,Passivation, Chromated, Skin-passed, Anti-finger Print | Trade Term: | CIF/CFR/FOB/EXW |
|---|---|---|---|
| Zinc Coating: | 30-275g/m2 | Product Name: | Galvanized Steel Coil |
| Standard: | AISI, ASTM, BS, DIN, GB, JIS | Delivery Time: | 7-15 Days |
| Highlight: | 26 Gauge Galvanized Coil,ASTM A653 Galvanized Coil,16 Gauge Steel Coil Galvanized |
||
Z181 SGH340 SGH400 SGH440 Galvanized Steel Coil 16 26 Gauge ASTM A653 Building Roof
Hot Dipped Galvanized Steel Sheet in Coil (GI coil) is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface.It has excellent corrosion resistance, paintability, and workability due to Zinc’s characteristic. Usually hot dipped galvanized steel sheet and galvanized steel coil process and specifications are basically the same.
Production Description
|
Technical
Standard
|
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
|
|||
|
Steel Grade
|
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,
SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
|||
|
Type
|
Coil
|
|||
|
Thickness
|
0.12-6.00mm, or customer's requirement
|
|||
|
Width
|
600mm-1500mm, according to customer's requirement
|
|||
|
Type of Coating
|
Hot Dipped Galvanized Steel(HDGI)
|
|||
|
Electric Dipped Galvanized Steel(EDGI)
|
||||
|
Zinc Coating
|
30-275g/m2
|
|||
|
Surface Treatment
|
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
|
|||
|
Surface Structure
|
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
|
|||
|
Quality
|
Approved by SGS, ISO
|
|||
|
Coil Weight
|
3-20 metric ton per coil
|
|||
|
Package
|
Standard Waterproof Package or according to customer's requirement
|
|||
|
Export market
|
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc
|
|||

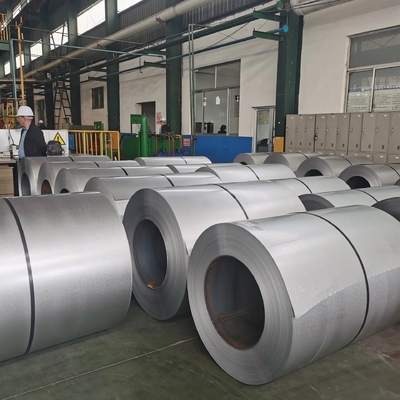

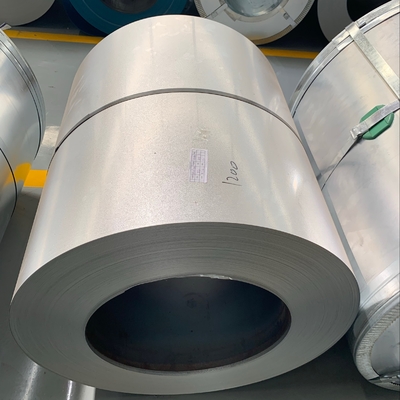

Detailed photo
Application
Company Profile
Jiangsu Lianzhong Metal Products (Group) Co., ltd.We are a professional manufacturer engaged in the research, development, production,sale and service. Our main products include PPGI ,galvanized steel , steel plate , round bar, steel pipe ,Stainless steel product,angle bar, steel pile ,H beam ,I beam, angle, Channel flat steel etc . Main market distributes in North America, South America,Africa, Southeast Asia as well as Oceania. Up to now, we have established long-term and win-win partnership with many large steel manufacturers, such as TISCO, Baosteel, Handan Iron and Steel, Angang. Sincerely wish to build a long and regular business with you forever.
Certificate
FAQ
Q:What are your company's main products?
A:Our main products are stainless steel sheet/coil/pipe/bar/wire/channel,carbon steel,galvanized steel,aluminum steel, etc.
Q:How do you control quality?
A:Mill test certification is supplied with shipment,third party inspection is avaliable.
Q:What are the advantages of your company?
A:We have many professionals,technical personnel,more competitive prices and best after-sales service than other stainless steel companies
Q:How many coutries you already exported?
A:Exported to more than 50 countries mainly from Arab, Kuwait, Egypt, Turkey, Jordan, Brazil, India, Indonesia, Korea, etc
Q:Can you provide sample?
A:Small sample in store and can provide the sample for free.Customized samples will take about 5-7days.
